Détail Infomation

Détection de gaz:	CO, CO2, NO2, O3, SO2, H2S, COV, CL2, F2, CH4, C6H6, C7H8, CH2O, C3H6O	Méthode d'échantillonnage:	Aspiration de pompage
Couleur:	Noir avec vert	Pouvoir:	Batterie au lithium rechargeable de grande capacité, 5200 mAh
Poids:	3700g	Humidité:	0 à 95% RH ((pas de condensation)
Température:	-20 ℃ ~ + 50 ℃	Garantie:	12 mois
Mettre en évidence:	14 Gas Detection Multi Gas Detector , 5200mAh Battery Portable Gas Analyzer , Modular Design Gas Detection Instrument

Description de produit

Portable Multi Gas Detector - 14 Gas Concentration Monitoring

Technical Specifications

Sensors	Electrochemical (CO, NO2, O3, SO2, H2S, CL2, F2, CH2O), Infrared Ray (CO2, CH4), PID (VOC, C6H6, C7H8, C3H6O)
Gas Detection	CO, CO2, NO2, O3, SO2, H2S, VOC, CL2, F2, CH4, C6H6, C7H8, CH2O, C3H6O
Measurement Range	0-2500PPM (CO), 0-5000PPM (CO2), 0-20PPM (NO2, SO2, CL2), 0-10PPM (O3, F2), 0-200PPM (H2S, VOC, C3H6O), 0-50%VOL (CH4), 0-10PPM (C6H6, C7H8), 0-5PPM (CH2O)
Resolution	1PPM (CO, CO2), 0.01PPM (NO2, O3, SO2, CL2, F2, C6H6, C7H8), 0.1PPM (H2S, VOC, C3H6O), 0.001PPM (CH2O), 0.01%VOL (CH4)
Display	Gas concentration data, measurement trend curves, battery status, time, pump condition
Alarm System	Audible buzzer, red LED indicator, display alerts, fault detection, pump abnormal alarm, low battery warning
Data Storage	Independent SD memory card, automatic recording with customizable time intervals
Data Transmission	RS485 output, USB interface with PC software for data download, analysis, and printing
Charging	Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger
Language	Chinese/English

Key Features & Advantages

Advanced Display & Design

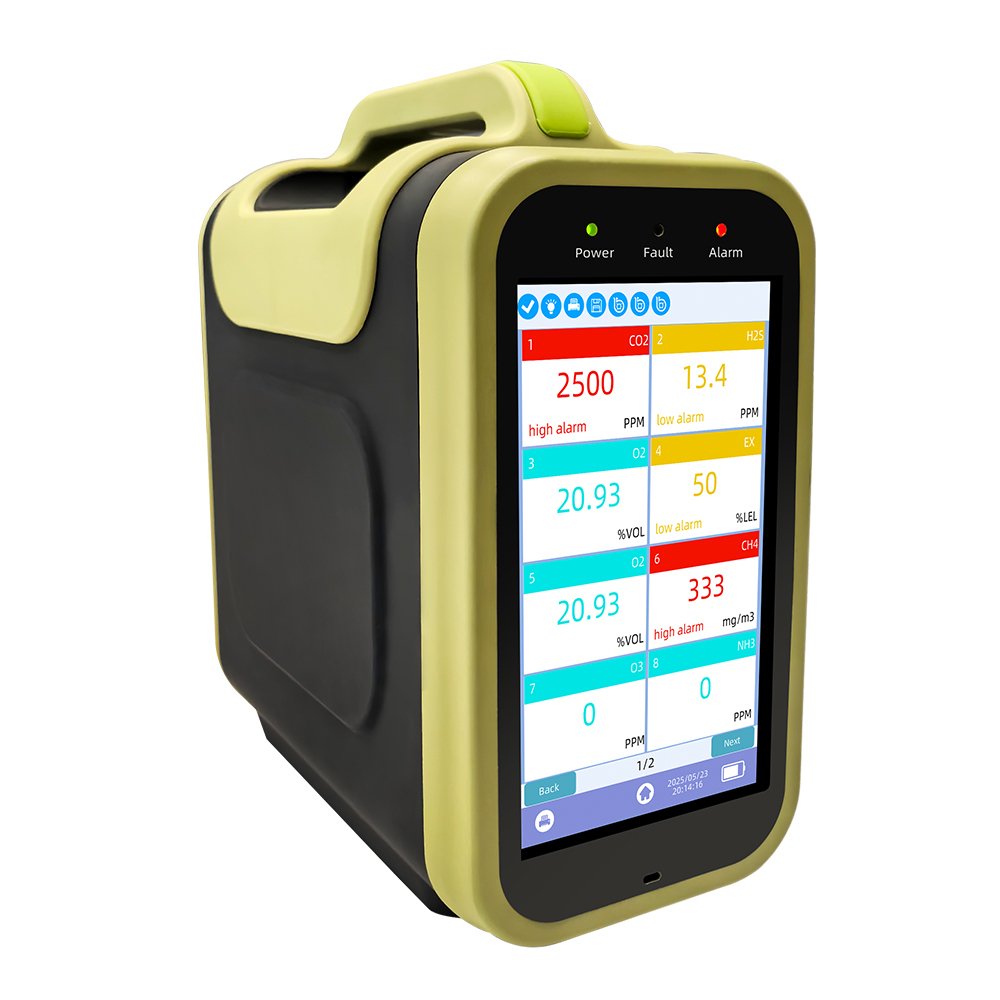

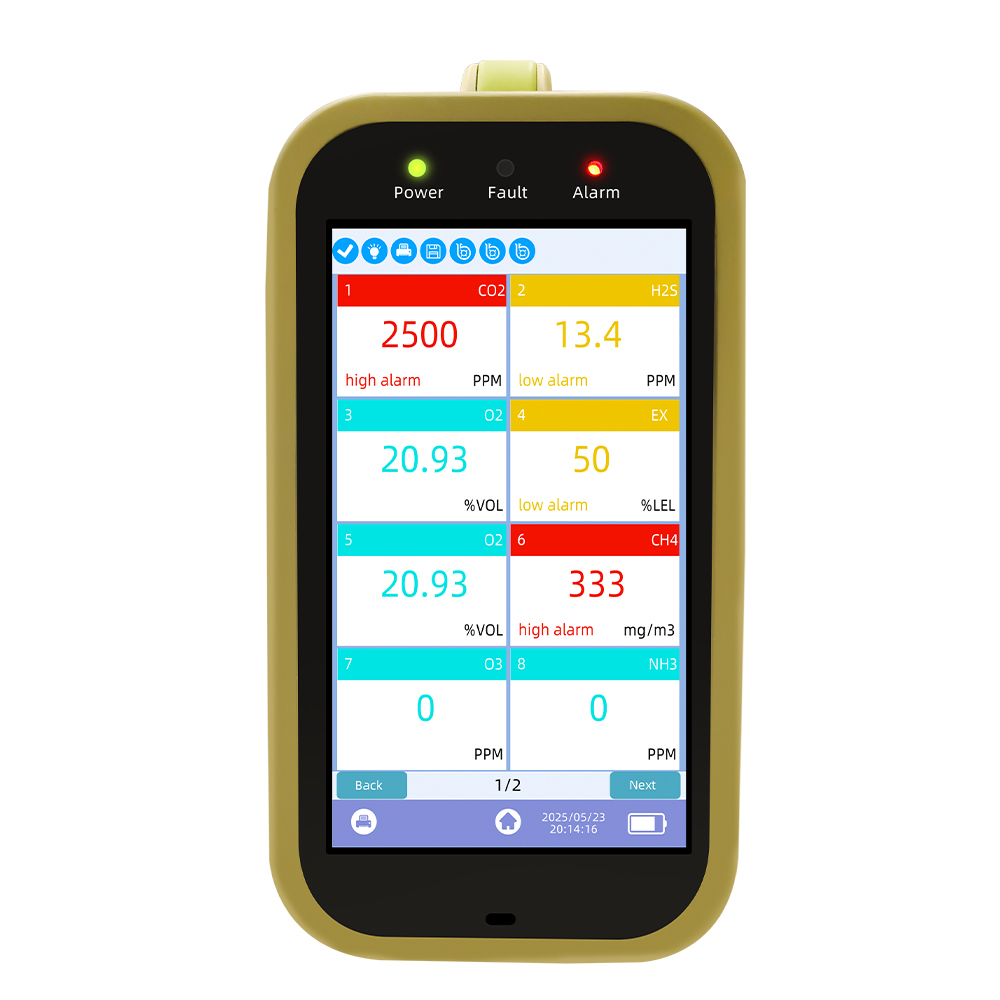

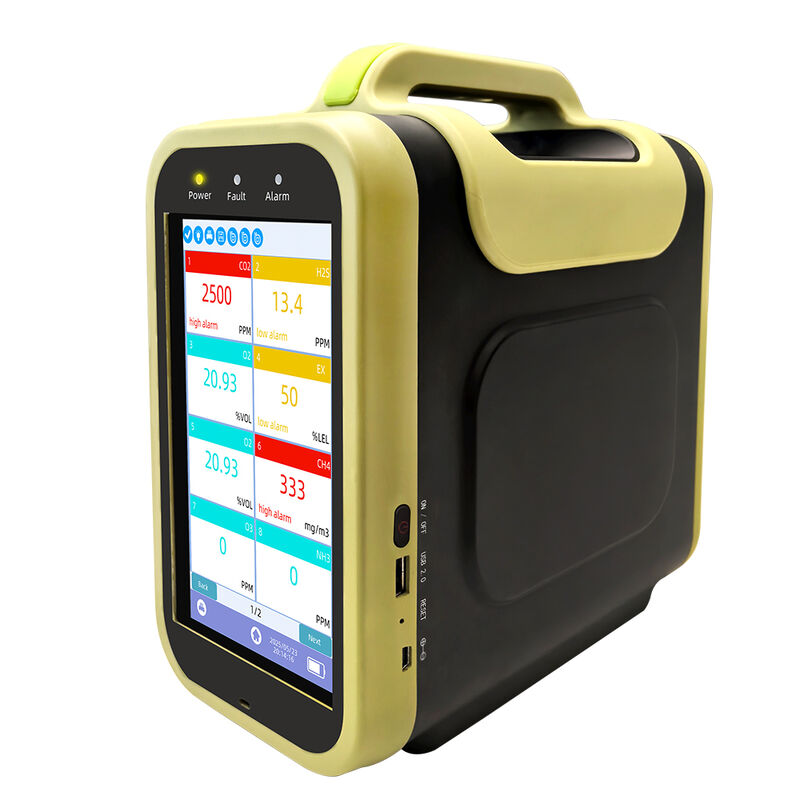

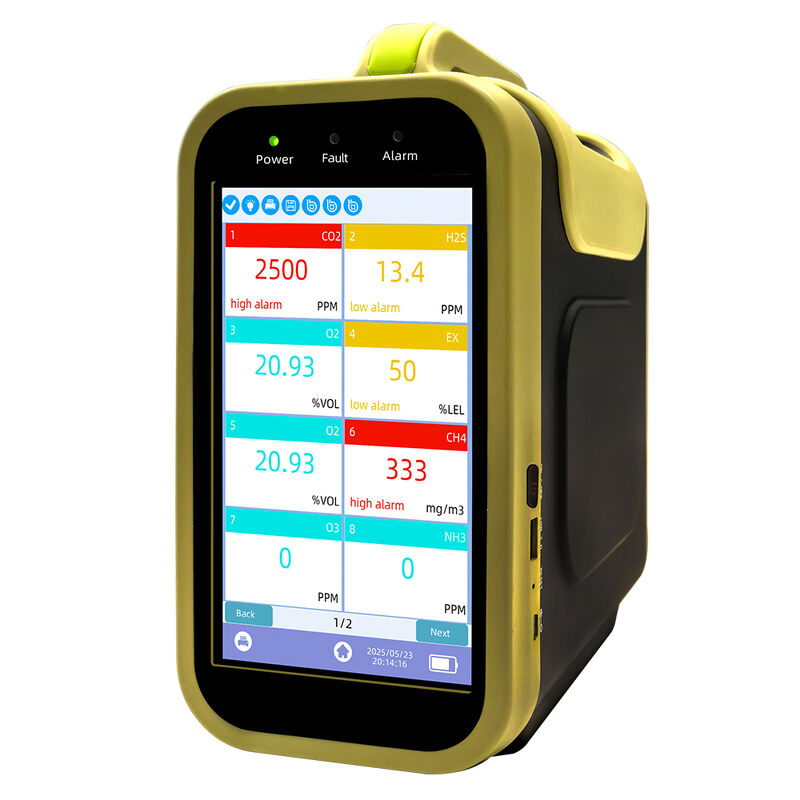

Features a 7-inch color touchscreen with 800 * 480 resolution and 150-degree wide viewing angle. The ergonomic chassis includes a carrying handle and is constructed from high-strength aviation-grade wear-resistant materials for durability in industrial environments.

Modular Internal Structure

Patented modular design with up to three independent detection modules, each capable of monitoring up to six gases. Separate air intake systems prevent cross-gas interference for enhanced accuracy.

High Customizability

Configurable with multi sensors to meet specific monitoring requirements, including custom flue gas configurations supporting up to 9 simultaneous gas measurements.

Multi-Pump System

Advanced air supply system with up to three pumps that can be switched independently. Ten adjustable flow rate settings accommodate different environmental conditions while protecting sensor longevity.

Comprehensive Data Management

Standard SD memory card supports real-time data, alarm values, and historical trend analysis with export capabilities via USB.

Safety & Security Features

Password protection prevents unauthorized parameter changes
Safety alert system for operator comfort

User-Friendly Operation

PPM/mg/m³ /%VOL unit switching with automatic conversion
Individual sensor factory reset capability
Chinese/English interface

Standard & Optional Accessories

Standard Package Includes:

User manual
Certificate/warranty card
SD memory card (capacities customized)
Charging adapter
Water trap filter
Intake sampling probe
1000mm sampling hose
Professional carrying case: non-toxic, odorless, explosion-proof, waterproof, heat-resistant, and corrosion-resistant

Why Choose Safegas?

R &D Experience: Over 25 years

Company Certifications: ISO9001, ISO45001

Product Certifications: IECEx ATEX CE

Delivery Time: 5-7 days

Annual Capacity: 80,000 units

Customer Service: Professional 24/7 support

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	SAFEGAS
Certification:	Chinese EX certificate
Numéro de modèle:	Sky8000

Quantité de commande min:	1
Prix:	négociable
Détails d'emballage:	CARTON
Délai de livraison:	10 jours ouvrables
Conditions de paiement:	T/T
Capacité d'approvisionnement:	300 pièces par mois

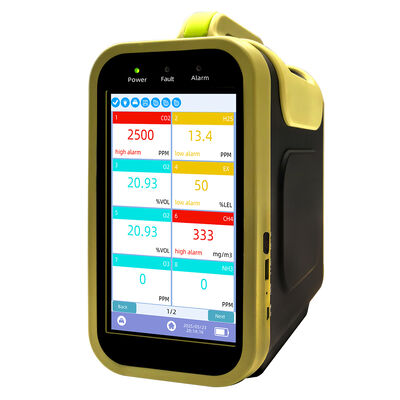

Portable Multi Gas Detector with 14 Gas Detection, 5200mAh Battery, and Modular Design for Industrial Safety
