Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter

Informations de base
Lieu d'origine: CHINE
Nom de marque: SAFEGAS
Certification: ATEX/EMC/IECEX
Numéro de modèle: Sky3000
Quantité de commande min: 1
Prix: négociable
Détails d'emballage: Valise en aluminium
Délai de livraison: 3-5 jours de travail
Conditions de paiement: T / t
Capacité d'approvisionnement: 1000 pièces par mois
Détail Infomation
Gaz détecté: Pour être spécifié Principe de détection: Pour être spécifié
Temps de réponse: ≤20 secondes Précision: ≤ ± 1-5%F.S, sauf pour les gaz spéciaux
Tester et calibrer automatiquement après l'alimentation: Y compris la réinitialisation, la valeur maximale (max), la valeur minimale (min), la strel, la vale Température de travail: -20 ℃ ~ + 50 ℃
Humidité: 10 ~ 90% Rh (pas de condensation) Pression environnementale: 86~106kpa
Taille: 157 × 84,5 × 59,5 mm (y compris le filtre à clip arrière / piège à eau) (longueur × largeur × hauteu Poids: 365 g (y compris la batterie, la pince et le filtre)
Mettre en évidence:

built-in gas sampling pump multi gas detector

,

multi gas detector with water filter

,

multi gas detector with dust filter


Description de produit

Product Name SKY3000 Portable Pumping Gas Detector
Product Overview SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.
Product Advantage
  1. IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  2. Standard man down alarm function
  3. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  4. One press to restore factory settings.
  5. Large graphical display can rotate 180°
  6. Standard water trap filter to protect the sensor
  7. With docking station to perform daily bump test and calibration (Optional)
  8. Wireless data transmission including Lora, Bluetooth (Optional)
  9. Support backlight function the backlight time can be manually set
  10. Low power consumption, long stand by time
  11. Support firmware upgrade remotely
Technical parameters
Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight
365g (including battery, belt clip and filter)

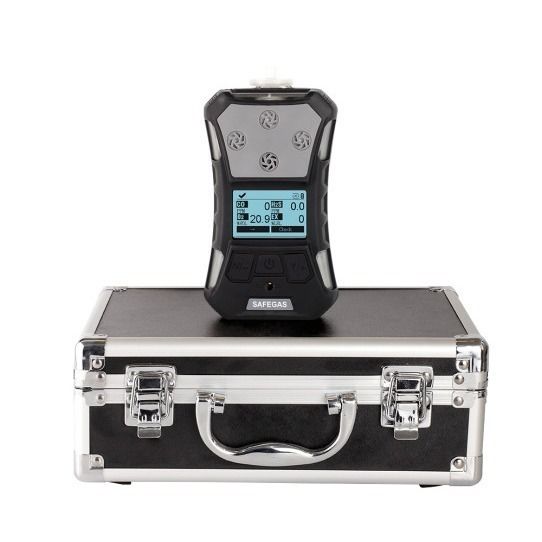

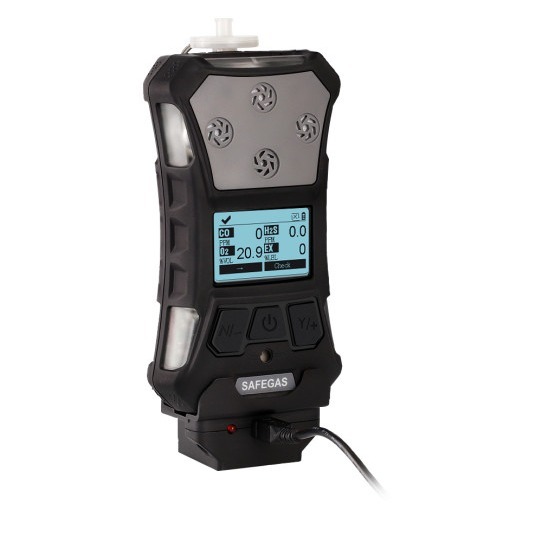

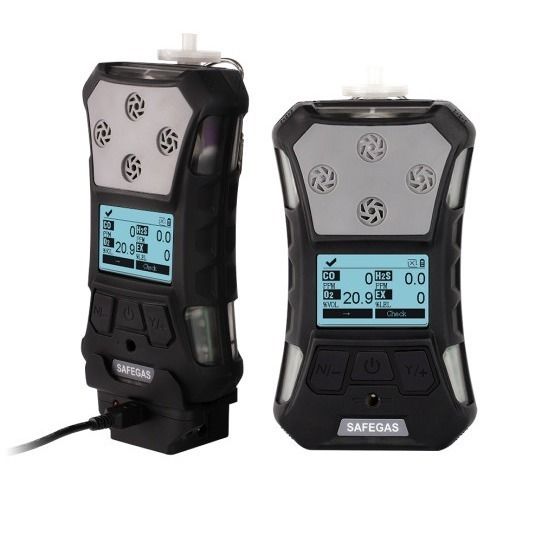

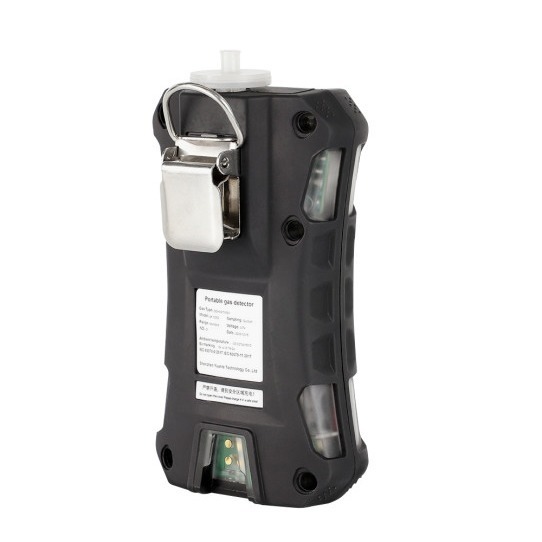

Product Images

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 0

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 1

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 2

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 3

Gas Detection Capabilities
Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 4 Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 5 Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 6
