Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring

Informations de base
Lieu d'origine: Chine
Nom de marque: SAFEGAS
Certification: ATEX/IECEX
Numéro de modèle: SG100
Quantité de commande min: 1
Prix: négociable
Détails d'emballage: Emballage de valise en aluminium
Délai de livraison: 3 jours de travail
Conditions de paiement: T/T, Union occidentale
Capacité d'approvisionnement: 100 pièces / jour
Détail Infomation
Gaz détecté: Les gaz toxiques, l'oxygène, les gaz inflammables et les gaz COV Mesurez la plage et la résolution: Spécifique selon l'application
Précision: ≤ ± 2-5%FS (en fonction du capteur spécifique) Grade résistant aux explosions:: Ex db IIC T6 Gb,Ex db ia IIC T6 Gb; ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Grade de protection: IP66 / 68 puissance dissipée: gaz toxique < 2,5 W, gaz inflammable < 4 W
Mode de communication: Le système de freinage doit être équipé d'un dispositif de freinage de freinage de freinage de frein Sans fil: LORA, 4G (facultatif)
Relais: 3 relais, y compris relais d'alarme basse/haute/faute (facultatif) Température de travail: 0°C 70°C (capteur catalytique), -20°C 50°C (capteur électrochimique)
CableEntries: 1 x 3⁄4 NPT et 1 xM 20 connexions d'entrée de câble Taille: 157.8x128.8x69.6 mm
Poids: 1,0Kg
Mettre en évidence:

fixed VOC gas detector

,

toxic gas continuous monitor

,

Safegas gas detection system


Description de produit

Product overview

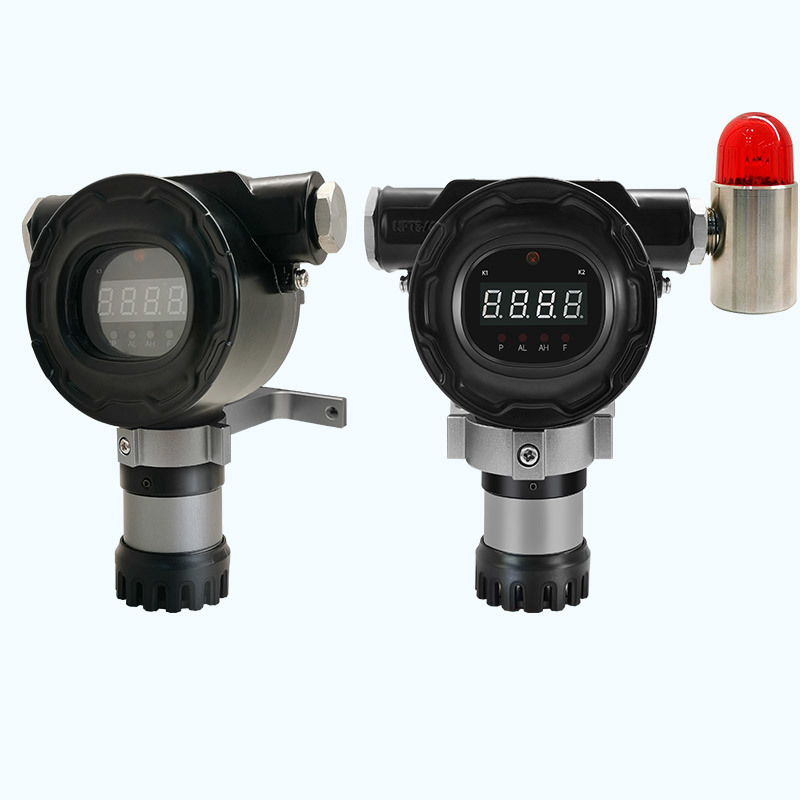

Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring 0

SG100 series is a cost-effectivegas detector for continuous monitoring oftoxicgases, oxygen,flammable, VOCgases.

It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. .

With optional wirelessdata transmission,customer is able to review, download the data remotely.Supportbothmagneticandremote control,flexibleforsetting.











Product Feature



Safegas Fixed Gas Detector Voc Gas Toxic Gas Continuous Monitoring 1●IP66/IP68 water & dust resistant

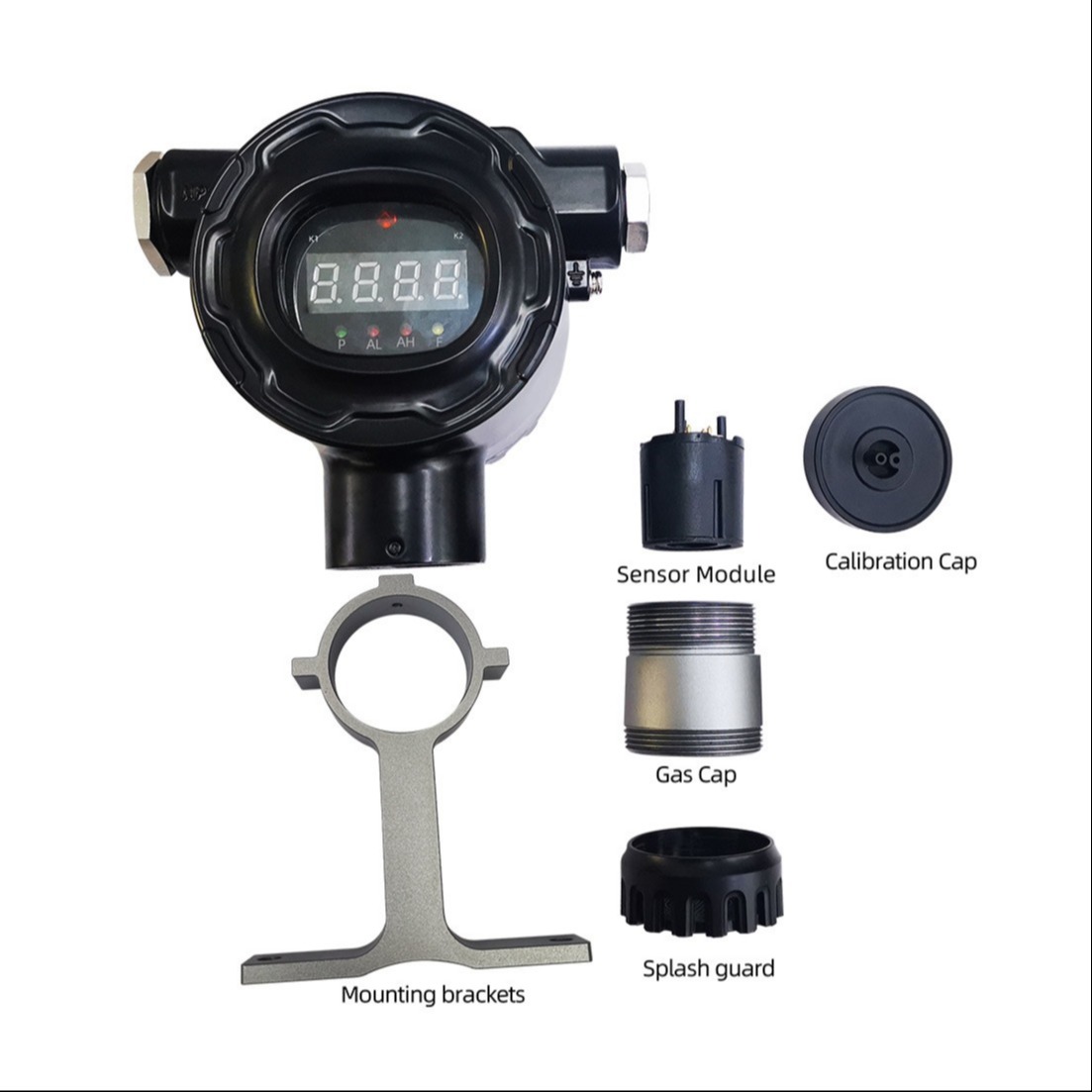

●Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier.



●With standard splash guard to protect sensor for outdoor installation or environment with water splash.



●Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation.

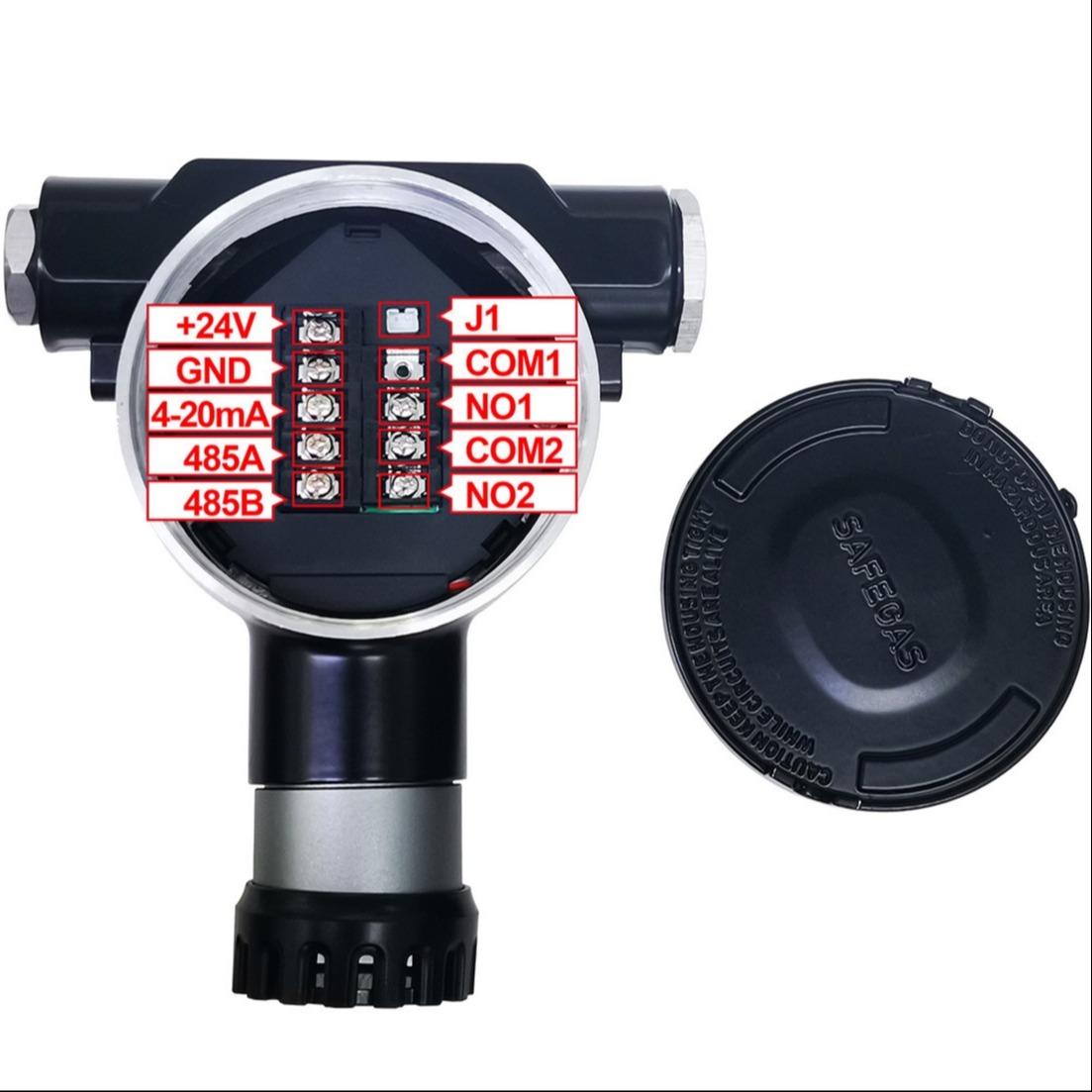

●Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.



●The detector comes with 3relays, including low/high/fault alarm relay(Optional)



●Support both magnetic andremote control, flexible for setting.
