ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor

Informations de base
Lieu d'origine: Chine
Nom de marque: SAFEGAS
Certification: ATEX/EMC
Numéro de modèle: SKY2000
Quantité de commande min: 1
Prix: négociable
Détails d'emballage: Carton (34 * 24 * 14cm)
Délai de livraison: 3 jours de travail
Conditions de paiement: T/T, Union occidentale
Capacité d'approvisionnement: 300 pièces par mois
Détail Infomation
Gaz détecté: O2 Plage de mesure: Pour le calcul de l'échantillonnage, les valeurs sont calculées à partir des données de référence.
Principe de détection: capteur d'oxygène électrochimique Durée de vie de l'instrument: Sensors pour 2 à 3 ans, instruments pour au moins 5 ans
Limite de détection minimale: 50ppm Erreur de linéarité: ±2%FS
Temps de réponse: T90< 30S ((25°C) Méthode d&#39;échantillonnage: Aspiration de pompage
Résolution: 1 ppm
Mettre en évidence:

ATEX Certified Portable Gas Detector

,

0-1000PPM Oxygen Gas Detector

,

Electrochemical Oxygen Sensor Single Gas Detector


Description de produit

ATEX Certified Portable Gas Detector for Low Concentration Oxygen Detection O2 0-1000PPM
Product Overview
The SKY2000 series gas detector is a high-performance measurement device offering fast response times and exceptional accuracy. Equipped with an internal sampling pump, it ensures rapid sampling with high flow rates for optimal detector response. Its compact, ergonomic design and durable high-intensity engineering plastics housing make it suitable for various industrial environments and applications.

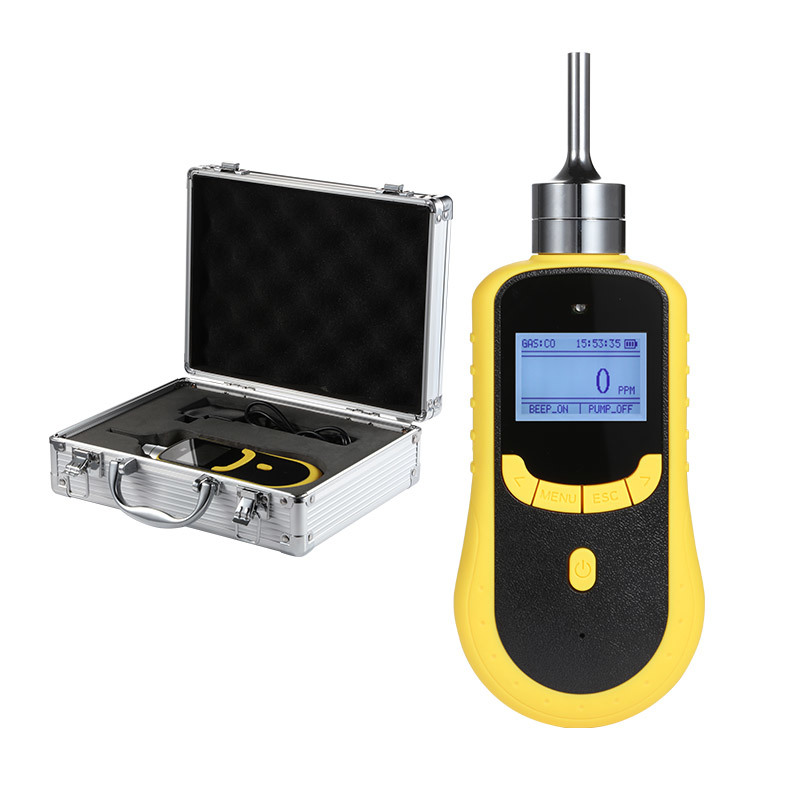

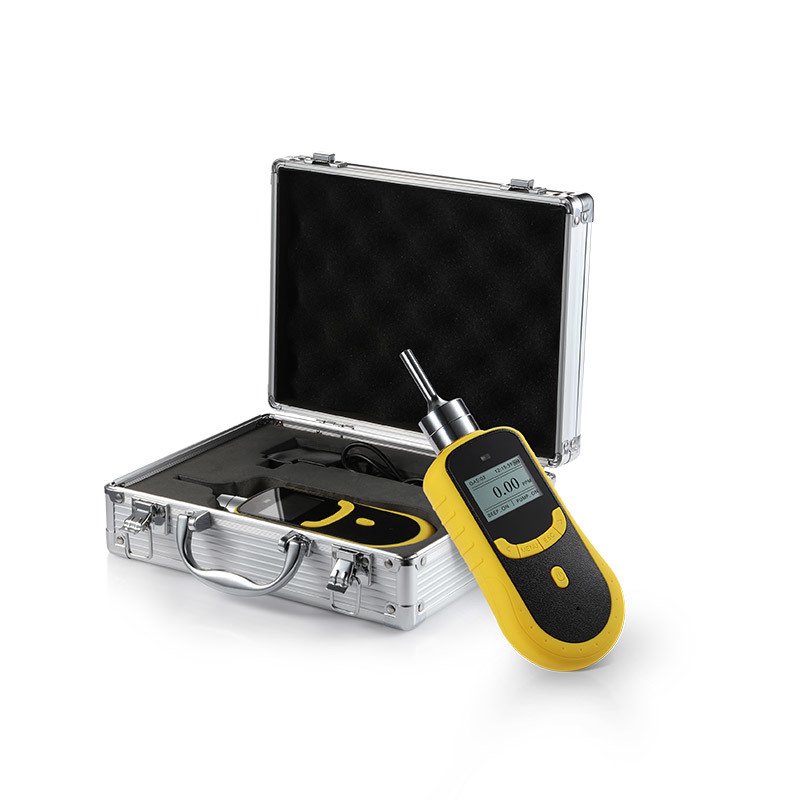

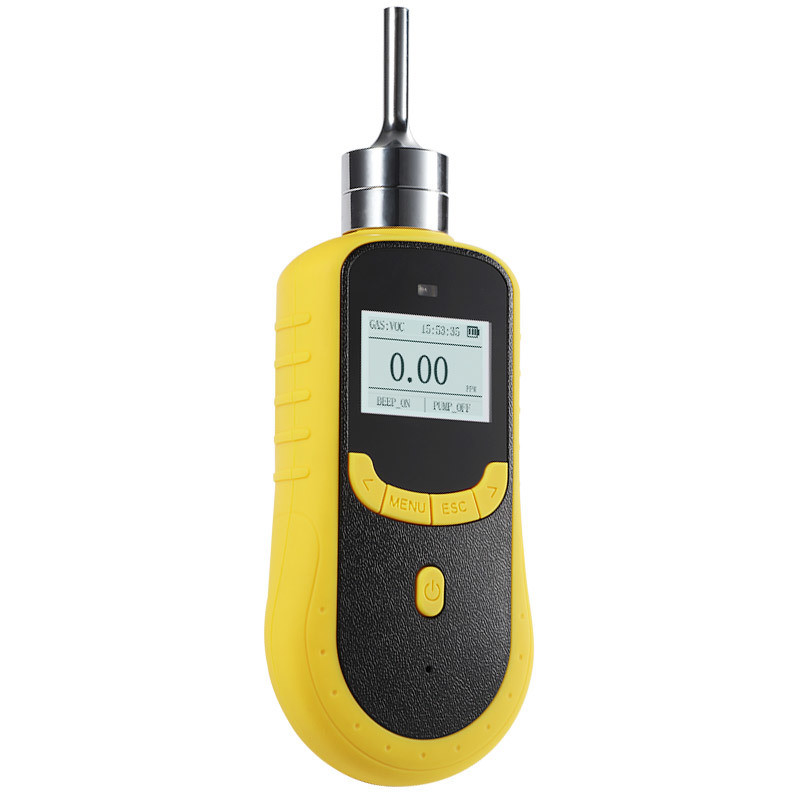

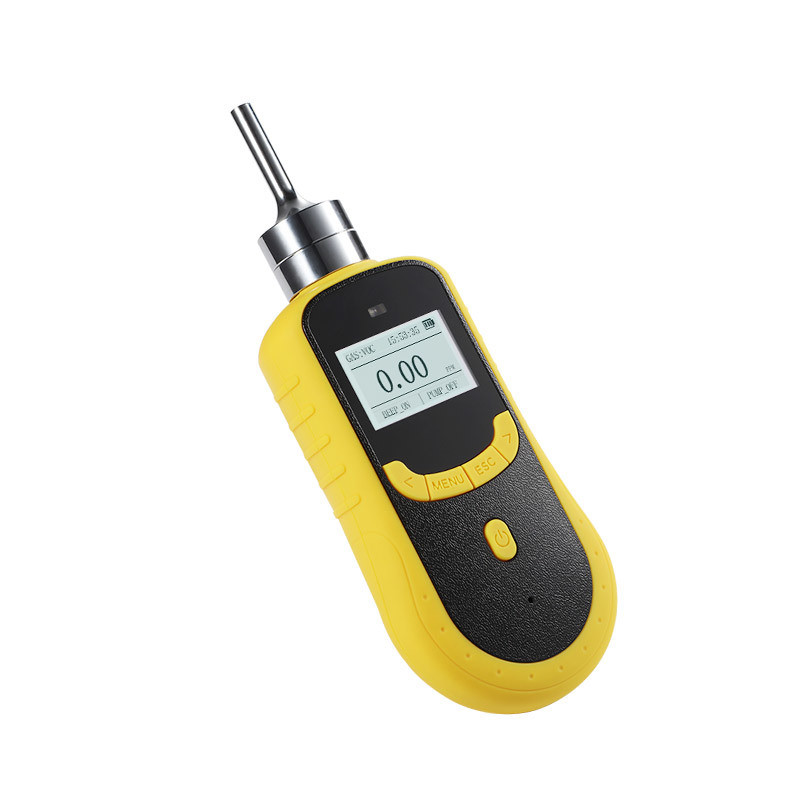

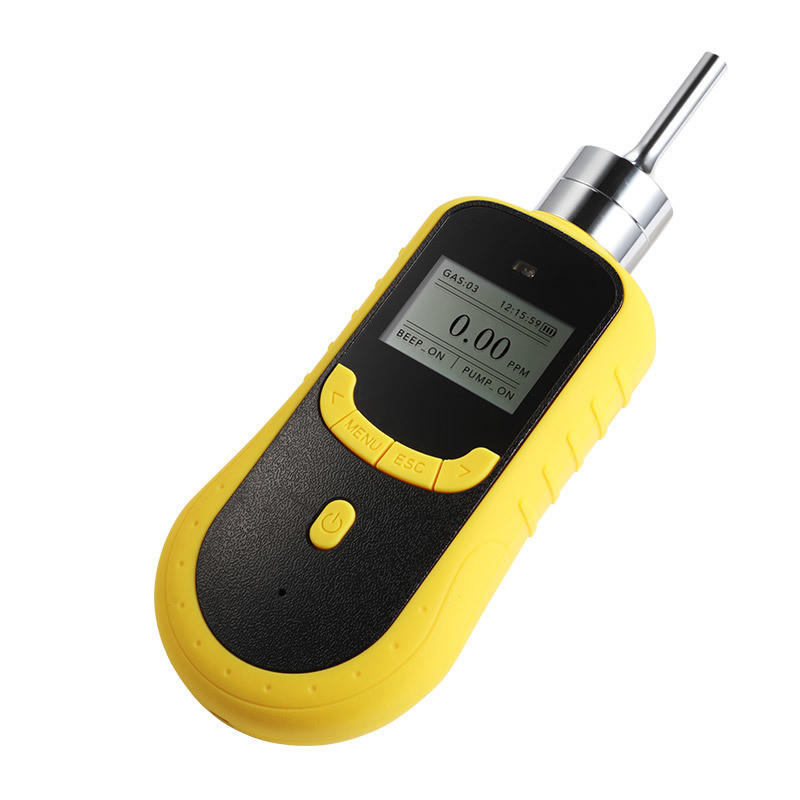

Product Images
ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 0 ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 1 ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 2
Key Advantages
  • Utilizes original imported first-class brand sensors
  • Optional high-speed USB data transmission for data downloading and printing
  • Fast zeroing capability - only 30 minutes from air (20.93% vol) to 150ppm
  • LCD dot matrix display showing gas type, unit, concentration, and local time
  • Bilingual operation support (Chinese and English)
  • Quick switching between PPM and mg/m³ concentration units
  • Built-in micro sampling pump with 10 adjustable suction grades
  • Explosion-proof certification: Ex ia IIC T4 Ga
Product Functions
  • Continuous monitoring of specified gas concentrations in environmental and enclosed spaces with alarm capability
  • Self-calibration and zero calibration functions for enhanced accuracy and reliability
  • One-button factory reset for easy recovery from mis-operations
  • Temperature and pressure compensation for accurate gas concentration readings
  • Two-stage alarm system with sound and light indicators
  • High-capacity rechargeable lithium polymer battery
  • Adjustable pumping sampling method
  • High-intensity engineering plastics housing with anti-skip, waterproof, dustproof, and explosion-proof properties
  • Elegant aluminum alloy carrying case
Technical Specifications
Parameter Specification
Gas Detected O2
Measurement Range 0-1000/5000/10000 ppm
Detection Principle Electrochemical oxygen sensor
Instrument Lifespan Sensors: 2-3 years, Instruments: ≥5 years
Minimum Detection Limit 50ppm
Linearity Error ±2%FS
Indication Error 50ppm-1000ppm: ±5%FS; 50ppm-5000ppm: ±3%FS; 50ppm-10000ppm: ±2%FS
Response Time T90<30S (25℃)
Sampling Method Pumping suction
Resolution 1ppm
Signal Output (Optional) High-speed USB data transmission
Operating Language Chinese/English
Operating Temperature -20℃~50℃
Explosion-Proof Rating Ex ia II CT4
Alarm Mode Sound, light, vibration
Dimensions 205*75*32mm
Recovery Time ≤10S
Display LCD dot matrix
Operating Humidity 0-90%RH
Protection Rating IP66
Operating Time 100 hours (pump off)
Weight 300g
Standard Configuration
  • SKY2000 Gas Detector Unit
  • Aluminum Carrying Case
  • Charging Adapter
  • Instruction Manual
  • Qualification Certificate
ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 3
Why Choose Safegas?
  • R&D Team Experience: Over 25 years
  • Company Certifications: ISO9001, ISO45001
  • Product Certifications: IECEx (the only one in China), ATEX, CE
  • Delivery Time: 5-7 days
  • Annual Production Capacity: 80,000 units
  • Customer Service: Professional sales staff providing 24/7 support
Safegas specializes in the design, production, and sales of environmental monitoring equipment and systems with 16 years of industry experience. Our core product line includes comprehensive gas detection solutions tailored for various industries including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances. Through continuous development, Safegas has become a leading supplier of environmental monitoring equipment in domestic and international markets.
ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 4
Safegas operates under the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Our corporate culture emphasizes friendliness, openness, and strict standards, enabling us to attract top talent and build exceptional management and R&D teams. All staff embrace our customer-oriented approach, ensuring superior service throughout all operations.
ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 5
Leveraging years of measurement experience and innovative solutions, Safegas develops advanced products through independent R&D, collaborative development, and integration of international technologies. We continuously strive for progress and innovation to meet the diverse needs of our customers worldwide.
ATEX Certified Portable Gas Detector with 0-1000PPM Range and Electrochemical Oxygen Sensor 6
