Name: Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Sky3000
Price: 2,210.00 USD
Availability: InStock

Détail Infomation

Type de gaz:	CO2 et O2	Méthode d'échantillonnage:	Aspiration de la pompe
Plage de mesure:	CO2 0 à 5000 ppm, O2 0 à 30%VOL	Résolution:	CO2 1PPM, O2 0,1%VOL
Certification:	CE,ATEX,IECEx,ISO	langue:	Chinois / anglais / russe / personnalisé
Mode d'alarme:	Buzzer, LED et vibration	Pouvoir:	Avec une batterie de lithium rechargeable de 3,7 V
Heure de travail:	Plus de 15 heures (avec pompe en marche)	Enregistrement de données:	Peut stocker 100000 ensembles de données
Taille du paquet unique ::	34cm * 24cm * 14cm	Poids brut unique::	1,64 kg
Mettre en évidence:	IP67 Portable Gas Detector , Pump Suction Multi Gas Detector , Alarm Function Gas Detection Instrument

Description de produit

Portable CO2 and O2 Gas Detector with Alarm Function

IP67 rated with back clip for easy carrying and industrial use

Why Choose Our Gas Detector?

25+ years of R&D team experience
Company certifications: ISO9001, ISO45001
Product certifications: IECEx (first in China), ATEX, CE
Fast delivery: 5-7 days
Annual production capacity: 80,000 units
Professional 24/7 customer support

Technical Specifications

Parameter	Specification
Sampling Method	Pump suction
Gas Type	CO2 and O2
Measurement Range	CO2: 0-5000PPM, O2: 0-30%VOL
Resolution	CO2: 1PPM, O2: 0.1%VOL
Response Time	≤10 seconds
Precision	≤±1%F.S
Language	English (customizable)
Automatic Functions	Power-on test, calibration, reset, MAX/MIN values, STEL, TWA
Units	PPM and mg/m³ switchable
Display	Monochrome graphics (160 x 96), auto-flip screen
Backlight	Manual setting, auto-on during alarms
Data Recording	100,000 data sets, adjustable storage interval (5-3600 seconds)
Alarm System	95dB buzzer, vibration, flashing LED, screen indication, latch function
Battery	3.7V rechargeable lithium, 2200mAh capacity
Working Hours	15+ hours continuous pumping
Charger	Travel charger with DC interface, ≥4 hours charging
Explosion-proof Rating	IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Certifications	2004/108/EC(EMC), 1995/5/EC(Radio), 94/9/EC(ATEX)
Protection Rating	IP67/IP68
Operating Temperature	-20°C to +50°C
Humidity	0-90%RH (non-condensing)
Environmental Pressure	86-106Kpa
Dimensions	157×84.5×59.5mm (with back clip/filter)
Weight	365g (with battery, clip and filter)
Bluetooth (Optional)	Real-time data transmission to mobile/PC

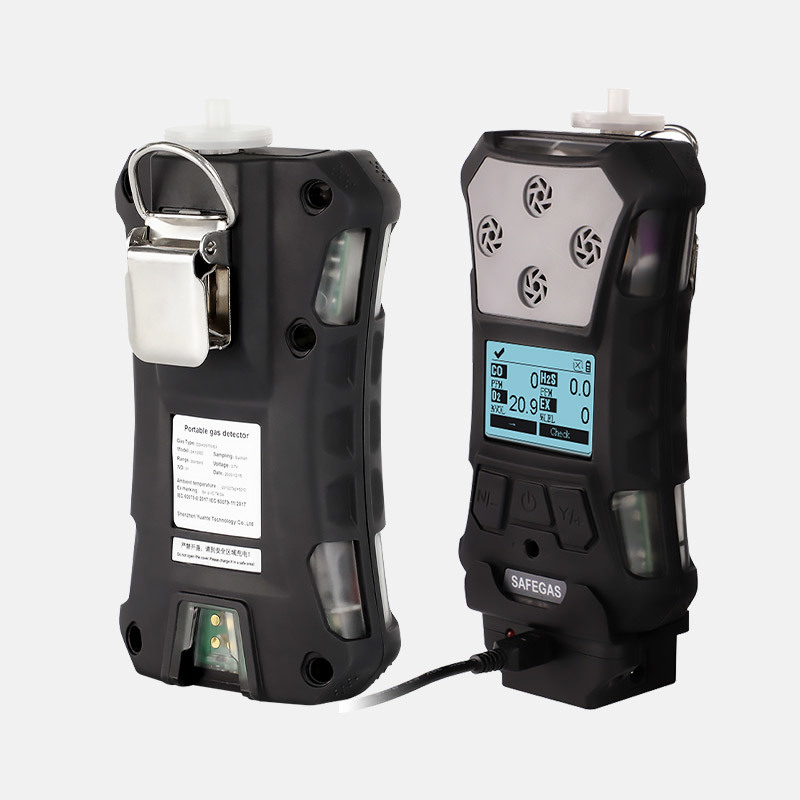

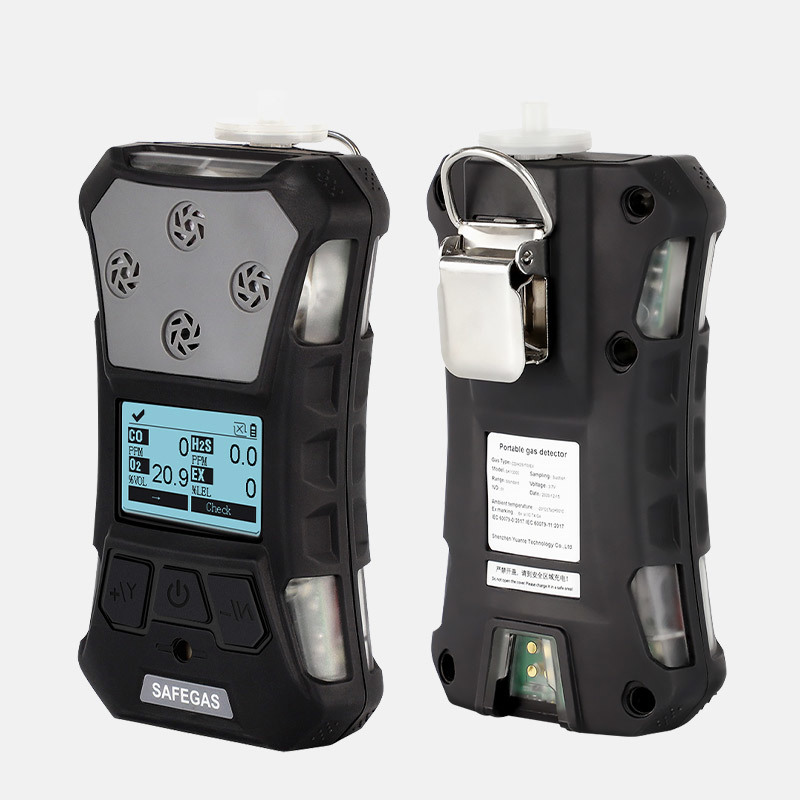

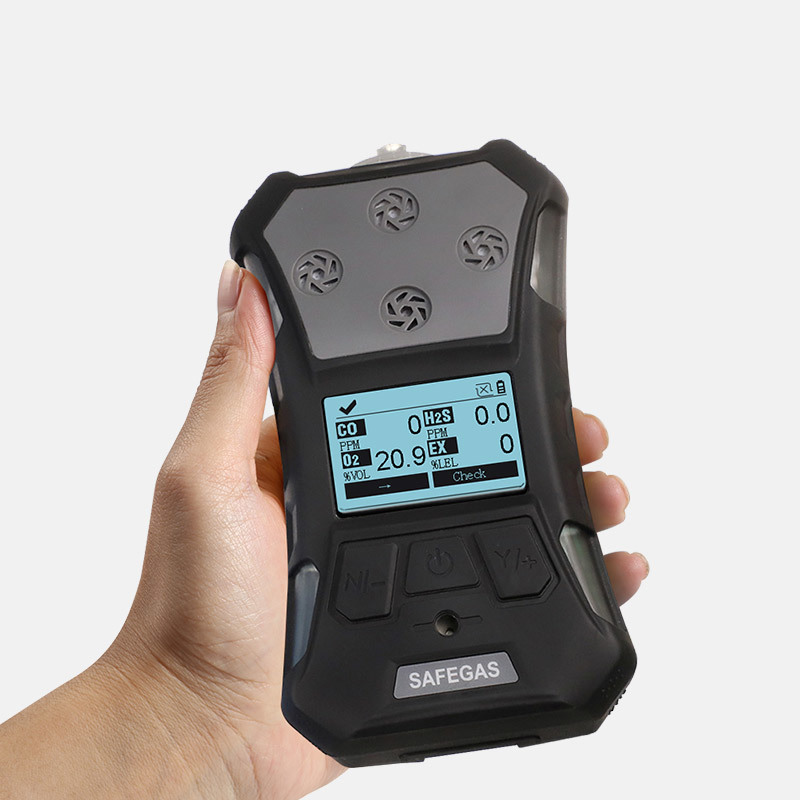

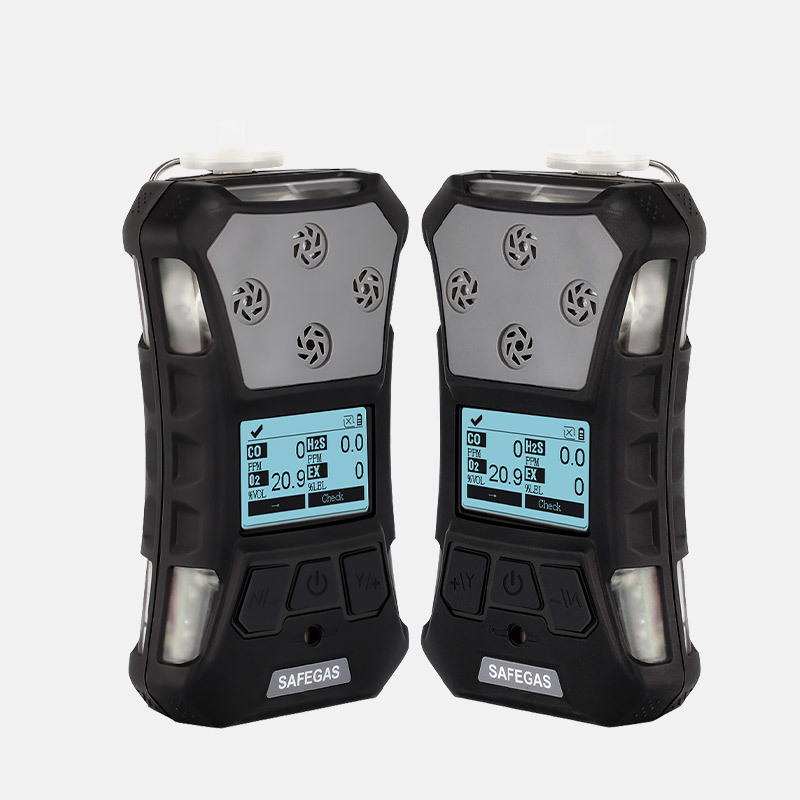

SKY3000 Portable Gas Detector

The SKY3000 series represents high-performance portable gas detection technology capable of simultaneous multi-gas monitoring (Oxygen compounds, VOC, combustible and toxic gases) with man-down alarm functionality.

Featuring user-friendly operations including one-key security detection, one-key storage, automatic screen flipping, and man-down alarm capability. Optional Bluetooth transmission enables safety personnel to access real-time data and alarm status remotely.

Certified with international IECEX, ATEX explosion-proof standards and Chinese explosion-proof certification. The device passes antistatic testing and achieves IP67 protection rating. Advanced safety design incorporates modular architecture for faster detection and ergonomic compact form for easy portability.

Primary operation utilizes pump suction mode with automatic failover to diffusion sampling during pump failure or emergency situations, providing enhanced protection levels.

Explosion-proof rating Ex ia IIC T4 Ga ensures suitability for explosive gas mixture zones 0, 1, and 2 in industrial facilities with gas groups ⅡA, ⅡB, ⅡC and temperature groups T1-T4.

Product Advantages

Rugged and durable construction
Explosion-proof circuit design for safety and reliability
Multiple security protection systems
Large screen display with flexible detection system
Multiple filtering devices for accurate measurements

Product Images

Industrial Applications

This versatile gas detection device serves multiple industrial sectors:

Petrochemical & Chemical Industry
Municipal Engineering & Utilities
Agricultural & Environmental Protection
Electronics Manufacturing
Food & Pharmaceutical Industry

Application Photos

Standard Configuration

Gas detector unit (1 piece)
12V/1A DC power adapter (1 piece)
USB cable (1 piece)
User manual (1 piece)
Warranty card (1 piece)
Filter (1 piece)
Aluminum carrying case (1 piece)

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	SAFEGAS
Certification:	ATEX/EMC/IECEX
Numéro de modèle:	Sky3000

Quantité de commande min:	1
Prix:	négociable
Détails d'emballage:	Valise en aluminium
Délai de livraison:	3 jours de travail
Conditions de paiement:	T/T, Union occidentale
Capacité d'approvisionnement:	1000 pièces par mois
