Name: SS316 Enclosure Fixed NO Gas Detector with IECEX ATEX Certification and IP66/68 Protection for Industrial Use
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 1,037.00 USD
Availability: InStock

Détail Infomation

Gaz détecté:	5000 mètres par semaine	Mesurez la plage et la résolution:	0-100 ppm
Précision:	≤ ± 2-5% FS	Certification anti-explosion:	IECEX, ATEX, CE, EMC
Degré de protection:	IP66 / 68	Mode de communication:	4-20mA 、 RS485 1 ～ 5V ， Facultatif Hart
Sans fil (facultatif):	Soutenir Lora ou 4G	Relais:	3 relais, relais d'alarme bas / haut / défaut
Température de travail:	De –20 ℃ à 50 ℃	Taille:	157.8x128.8x69.6 mm
poids:	environ 1,0 kg

Description de produit

SG100 Fixed Gas Detector

The SG100 series gas detector offers excellent value, providing continuous monitoring for toxic gases, oxygen, flammable substances, and VOCs. It's perfectly designed for industrial use, guaranteeing precise gas detection to meet safety and compliance standards.

Boasting IECEx and ATEX certifications, this detector features an intrinsically safe explosion rating. This makes it reliable for operation in high-risk environments such as oil refineries and chemical plants.

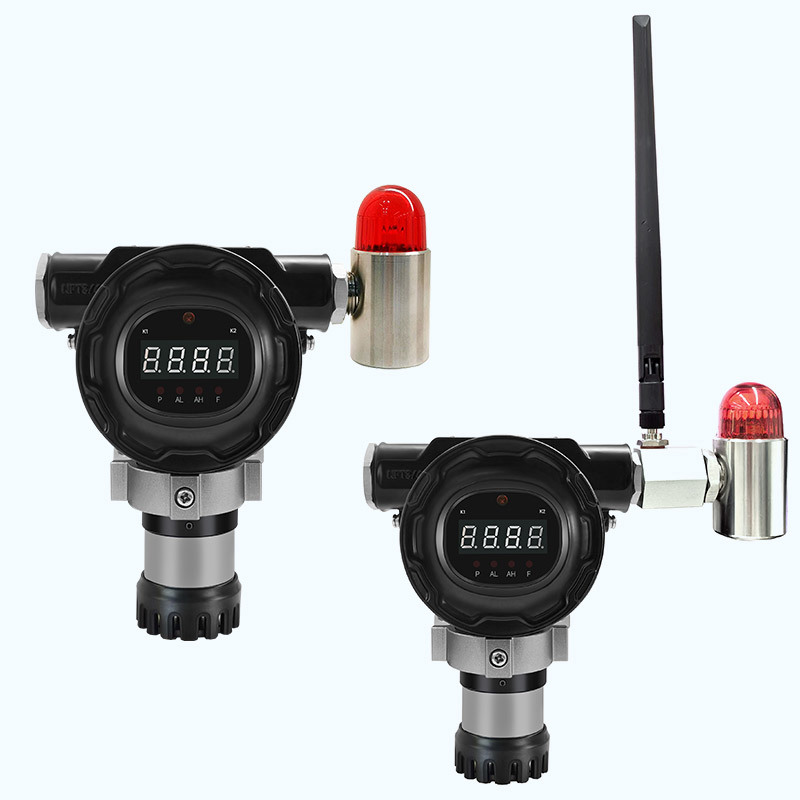

In terms of connectivity, it provides 2-wire or 3-wire 4-20 mA analog, RS485 Modbus, and optional HART outputs, allowing seamless integration with most control systems. The optional wireless data transmission function enables remote data access, improving overall operational efficiency.

Equipped with both magnetic and remote control options, the SG100 series allows for easy setting adjustments. Magnetic control enables convenient on-site operation, while remote control offers safe configuration from afar.

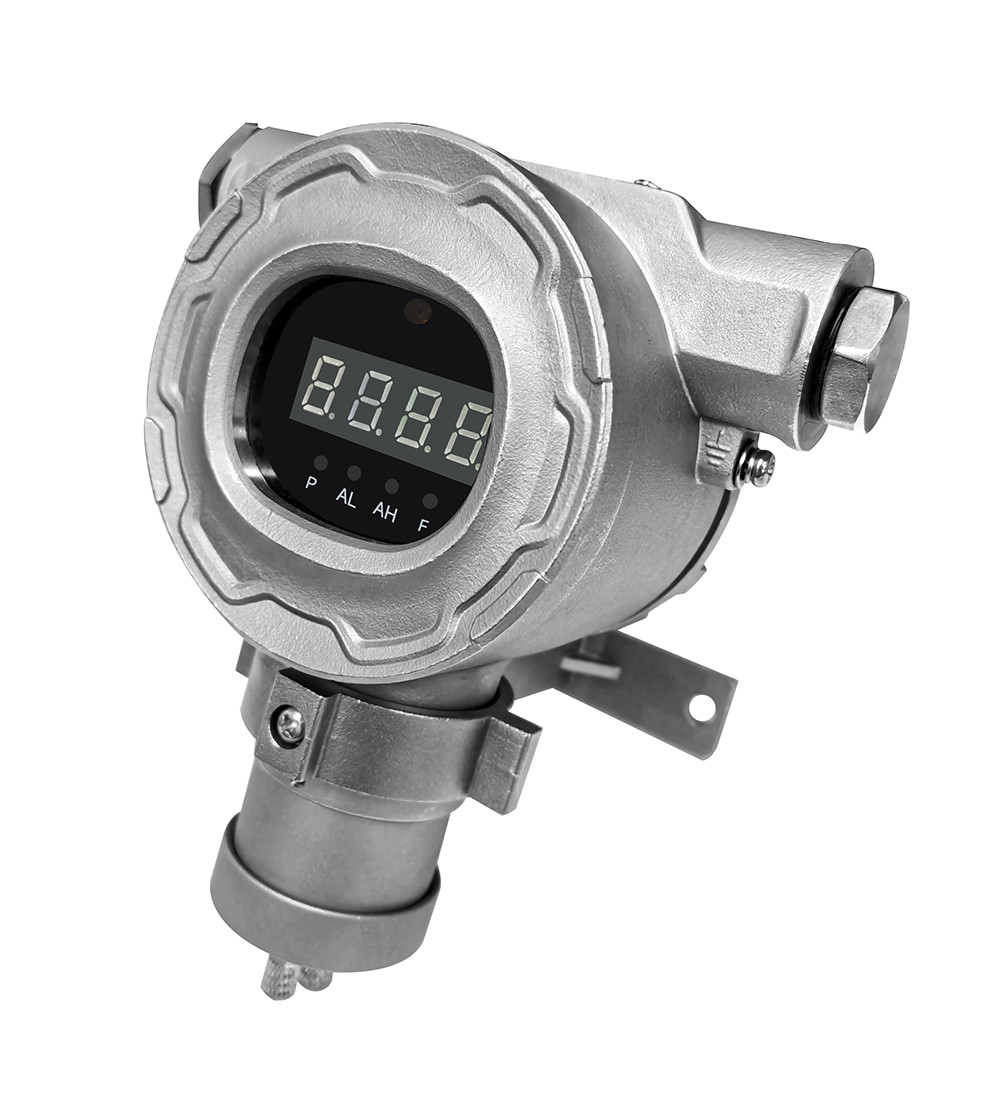

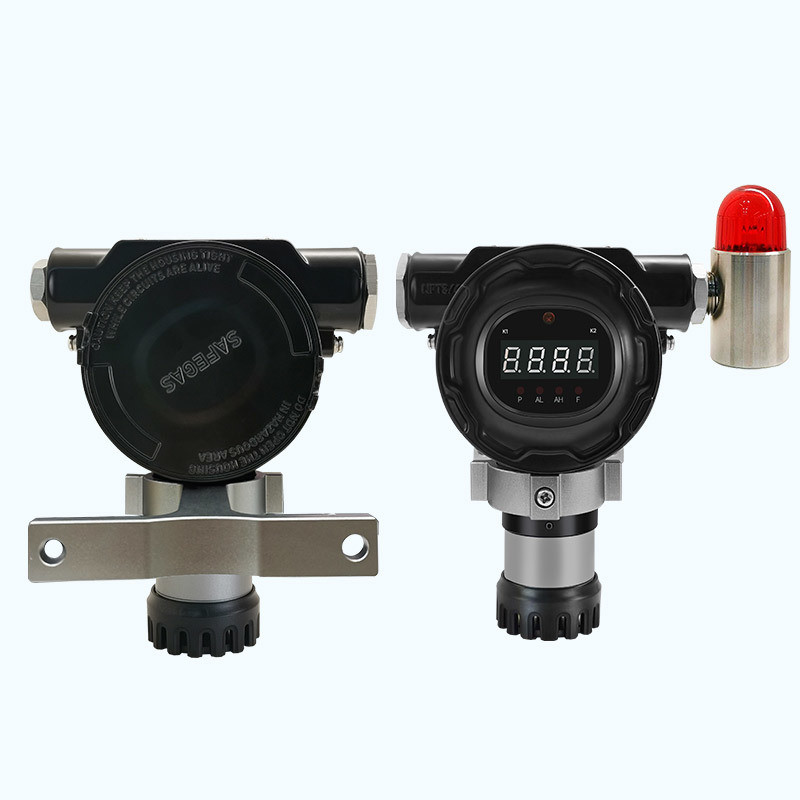

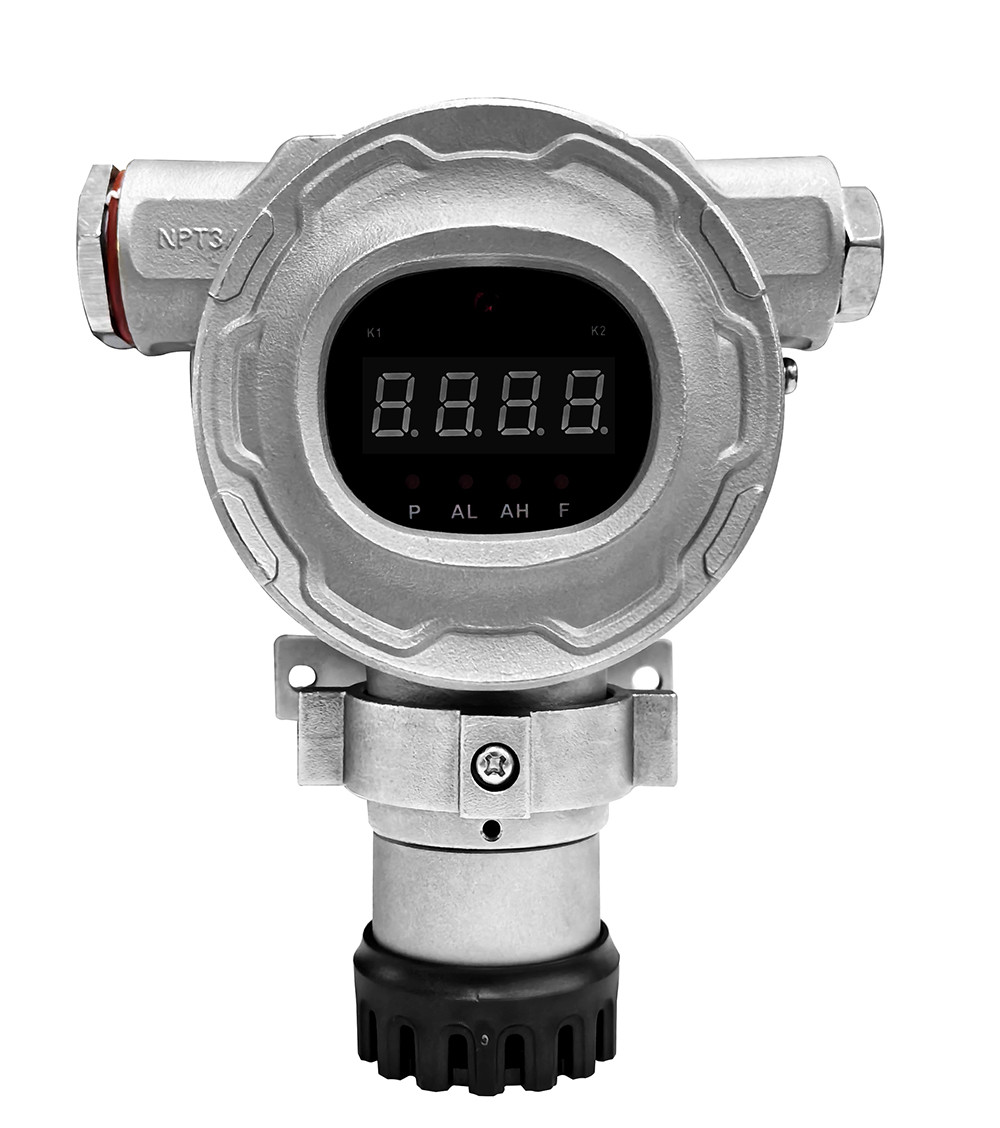

Product Images

Product Advantages

Robust Protection

IP66/IP68 ratings provide resistance to powerful water jets and submersion, while fully blocking dust - ideal for harsh outdoor and industrial settings.

Easy Integration

Intelligent plug-and-play design with easy calibration via Safegas PC software simplifies replacement and maintenance for optimal performance.

Simple Installation

Weighing only 1 kg with standard mounting bracket and splash guard for outdoor or water-splash environments.

Versatile Connectivity

Standard 4-20 mA analog and RS485 Modbus outputs, plus optional Hart and 2-wire outputs for broad system compatibility.

Advanced Control

3 optional relays for low/high/fault alarms with magnetic and remote control for flexible parameter adjustment.

Technical Specifications

Parameter	Specification
Detected Gas	SO2
Measure Range	0-100PPM
Install Method	Wall-mounted, piping type, flow-type
Output Signal	4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision	≤±1%F.S. (to be specialized)
Zero Shift	≤±1%(F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G3/4 external thread explosion-proof flexible pipe
Thread Size	Standard M20*1.5, 3/4NPT
Temperature	-20℃～50℃
Humidity	10-95%RH (non-condensing)
Explosion-Proof	Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of Protection	IP66/IP68
Material	Sensor housing: aluminum alloy or 316 stainless steel
Power	12-24V DC
Dimensions	15812970mm
Weight	≤1kg
Approval	CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty	12 months

Detectable Gases

SG100 model can detect single gas. Here are some of the gases we can detect:

Application Case: China Warehouse Combustible Gas Detection

Detection Requirements:

Install two fixed combustible gas detectors with data display, alarm function and simple installation
Install control panel outside warehouse with data display and alarm function
Cost-effective products needed

Solution:

Gas detector: SG100-A-EX with imported combustible gas sensor and sound/light alarm
Control panel: YT-1100H

Solution Features:

All recommended products meet customer needs
Equipped with original imported combustible gas sensor for accurate and stable detection
LED display for clear and readable data
Sound and light alarm activation when concentration reaches set value
Lightweight design (1kg) with standard mounting bracket for simple installation
Cost-effective YT-1100H control panel with 4-20MA connection
Cyclical gas concentration display and sound/light alarm transmission

Why Choose Us?

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Quality Control

We control the entire process from design-R&D-production-sales to ensure product quality consistency. Over 100 independent intellectual property patents.

Expert Team

Professional R&D department with 25 years of industry experience providing technical after-sales service. 7*24h customer support.

Certifications

ISO9001 and ISO14001 certifications. First and only manufacturer in China with IECEx and ATEX explosion-proof certification for hazardous areas.

Premium Components

Core components use imported brands sensors for accuracy, stability, and extended service life.

Fast Delivery

Complete product line and stable inventory. Orders under 10 pcs delivered within 3 days. Orders over 100 pcs delivered within half a month.

Frequently Asked Questions

Q1: What is a gas detector?

A1: Gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.

Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.

Q4: Are you manufacture or trading company?

A4: We are a professional manufacturer specializing in gas detectors for more than 10 years.

Q5: What is the MOQ?

A5: Usually it is 1 piece.

Q6: How about the quality of your products?

A6: Our product is made of imported sensors and components, and the products are certified.

Q7: How long is the warranty time of the products?

A7: The warranty period is 1 year from the factory, we also provide lifetime maintenance.
