Name: Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Détail Infomation

Gaz détecté:	COV	Gamme:	0-100 ppm
Resolusion:	0,1 ppm	Type de capteur:	Électrochimique
Code HS:	9027100090	Dimensions:	180 mm × 150 mm × 90 mm
Poids:	moins de 1,6 kg	Qualité antidéflagrante:	D ex IIC T6 gigaoctet
Afficher:	Écran LCD	Répétabilité:	≤ ± 1%
Shift zéro ((F.S./année):	≤ ± 1%

Description de produit

Explosion Proof Built For Harsh Industrial Areas VOC Gas Detector With IP65 Protection

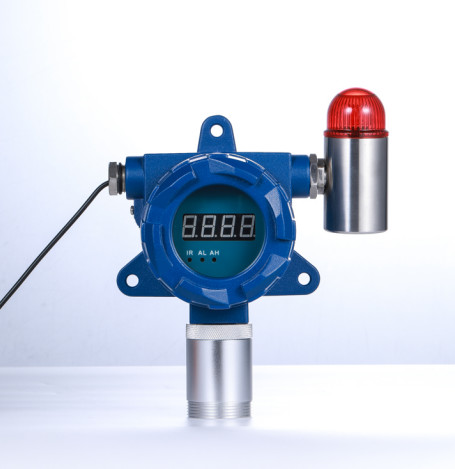

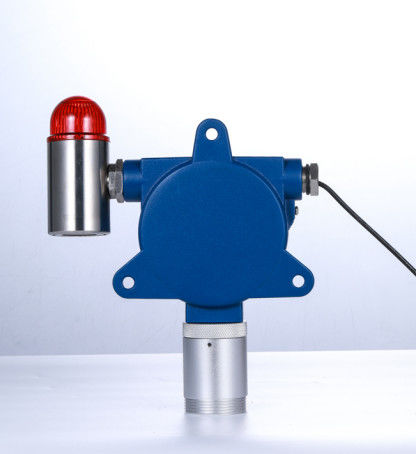

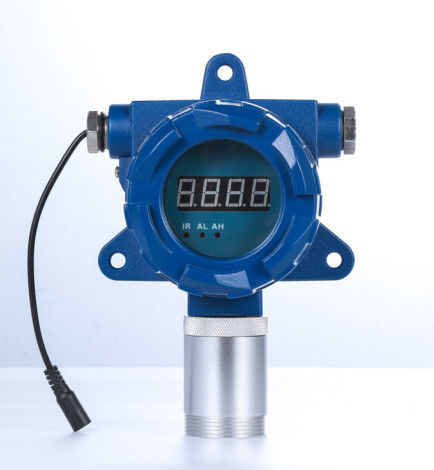

YT-95H-A Fixed VOC Gas Detector

High-precision Fixed VOC Gas Detector with diffusion detection principle, designed for industrial safety applications.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Featuring a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, it's compatible with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. With optional wireless function, operators can view data remotely on laptops, mobile phones, or cloud systems.

Key Features

Online Monitoring with Sound/Light Alarm (Optional): 24-hour continuous monitoring with real-time data display. High/low alarm with sound and light, sound >90dB, with settable alarm points

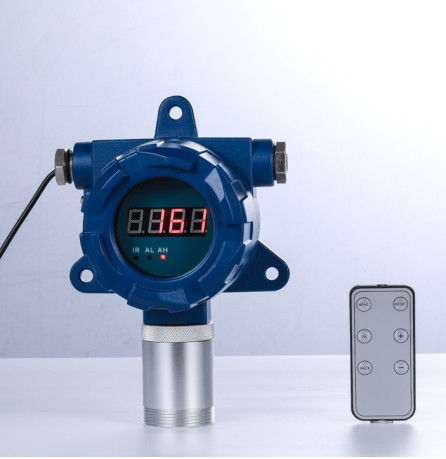

Non-Contact Device Control: Infrared ray controller for remote control of alarm point settings, zero calibration, and address modification
Variety of Installation Methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices
Data Transmission: Compatible with PC software for data transmission to computers. Optional wireless data transmission including Lora and 4G
High Quality Case: Die-cast aluminum case, strong and durable. Optional stainless steel case. IP65 protection degree - water-proof, dust-proof, explosion-proof

Technical Specifications

Gas Detected	VOC
Detection Principle	Electrochemical
Measure Range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response Time (T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero Shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45×2mm
Temperature	-20℃ ~ 50℃
Humidity	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof Grade	Ex d IIC T6 Gb

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 0

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 1

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 2

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 3

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 4

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 5

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	SAFEGAS
Certification:	CNEX CE ISO9001, ISO14001, ISO45001
Numéro de modèle:	YT-95H

Quantité de commande min:	1
Prix:	négociable
Détails d'emballage:	Carton
Délai de livraison:	3 jours de travail
Conditions de paiement:	T/T, Union occidentale
Capacité d'approvisionnement:	1000 pièces par mois
