Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified

Informations de base
Lieu d'origine: Chine
Nom de marque: SAFEGAS
Certification: ATEX/EMC/IECEX
Numéro de modèle: Sky3000
Quantité de commande min: 1
Prix: négociable
Détails d'emballage: Valise en aluminium
Délai de livraison: 3 jours de travail
Conditions de paiement: T/T, Union occidentale
Capacité d'approvisionnement: 1000 pièces par mois
Détail Infomation
gaz: F2 Plage de mesure: 0-10ppm
Résolution: 0,0011 ppm Type de capteur: Électrochimique
Méthode d'échantillonnage: Aspiration de la pompe Certification: CE,ATEX,IECEx,ISO
Langue: Chinois / anglais / russe / personnalisé Mode d'alarme: Buzzer, LED et vibration
Pouvoir: Avec une batterie de lithium rechargeable de 3,7 V Heure de travail: Plus de 15 heures (avec pompe en marche)
Enregistrement de données: Peut stocker 100000 ensembles de données Taille du paquet unique :: 34cm * 24cm * 14cm
Poids brut unique:: 1,64 kg Degré de protection: IP67

Description de produit

Smart F2 Gas Detector For Fluorine Gas Leak Detection Chemical Semiconductor Industry
Product Overview

Portable F2 Gas Detector With Pump Sampling Industrial Safety Monitoring With ATEX And IECEX

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.

Technical Specifications
ParameterSpecification
Sampling methodPump suction
Gas typeSpecified according to application
Measure rangeSpecified according to application
ResolutionSpecified according to application
Response time≤10 seconds
Precision≤±1% F.S
LanguageEnglish (Other languages customizable)
Automatic functionsReset, maximum value (MAX), minimum value (MIN), STEL, TWA value
UnitPPM and mg/m³ switchable
DisplayMonochrome graphics (160 x 96), automatic screen flip
BacklightManually settable time, automatic on during alarm
Data record100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable
Alarm95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification
Battery3.7V rechargeable lithium battery, 2200mA capacity
Working hoursMore than 15 hours continuous pumping
ChargerTravel charger with DC interface, ≥4 hours charging time
Explosion-proof gradeIECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Certification (EU)2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX)
Protection gradeIP67/IP68
Working temperature-20ºC to +50ºC
Humidity0-90% RH (no condensation)
Environmental pressure86-106 Kpa
Size157 × 84.5 × 59.5mm (including accessories)
Weight365g (including battery and accessories)
Bluetooth function (Optional)Real-time data transmission to mobile phone or PC
Key Features
  • Multi-gas detection capability (Oxygen compounds VOC, combustible gas, toxic gas)
  • Man down alarm function for enhanced safety
  • One-key security detection and storage operations
  • Automatic image flipping and ergonomic design
  • Optional Bluetooth transmission for real-time data monitoring
  • International IECEX, ATEX explosion-proof certification
  • IP67 protection rating with antistatic testing
  • Automatic switch between suction and diffusion sampling methods
  • Compact, portable design for easy carrying

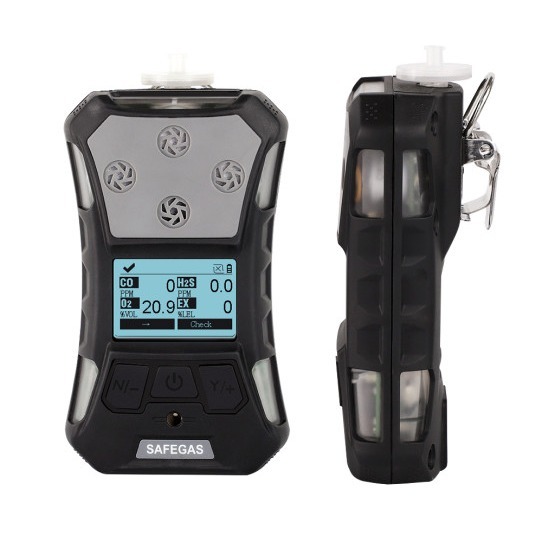

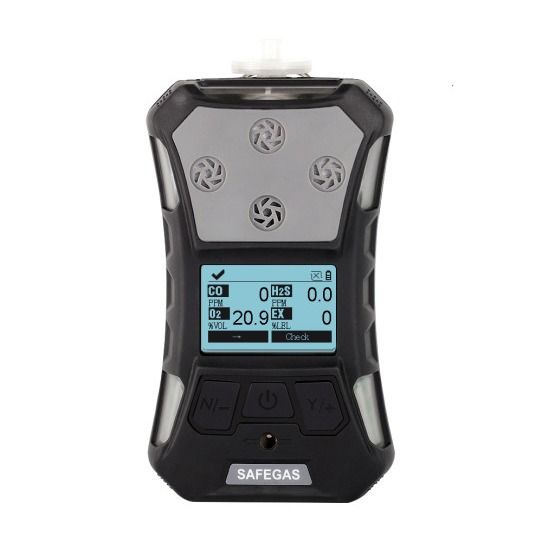

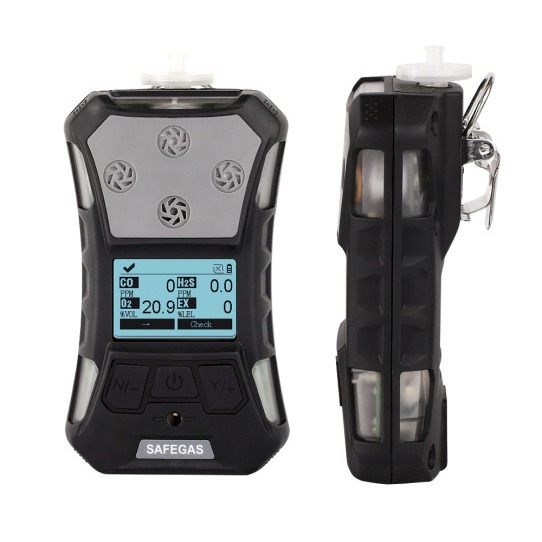

Product Images
Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 0Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 1Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 2Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 3Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 4Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 5
Applications

This device is widely used in various industrial fields:

  • Petrochemical & Chemical Industry
  • Municipal Engineering & Utilities
  • Agricultural & Environmental Protection
  • Electronic Industry
  • Food & Pharmaceutical Industry

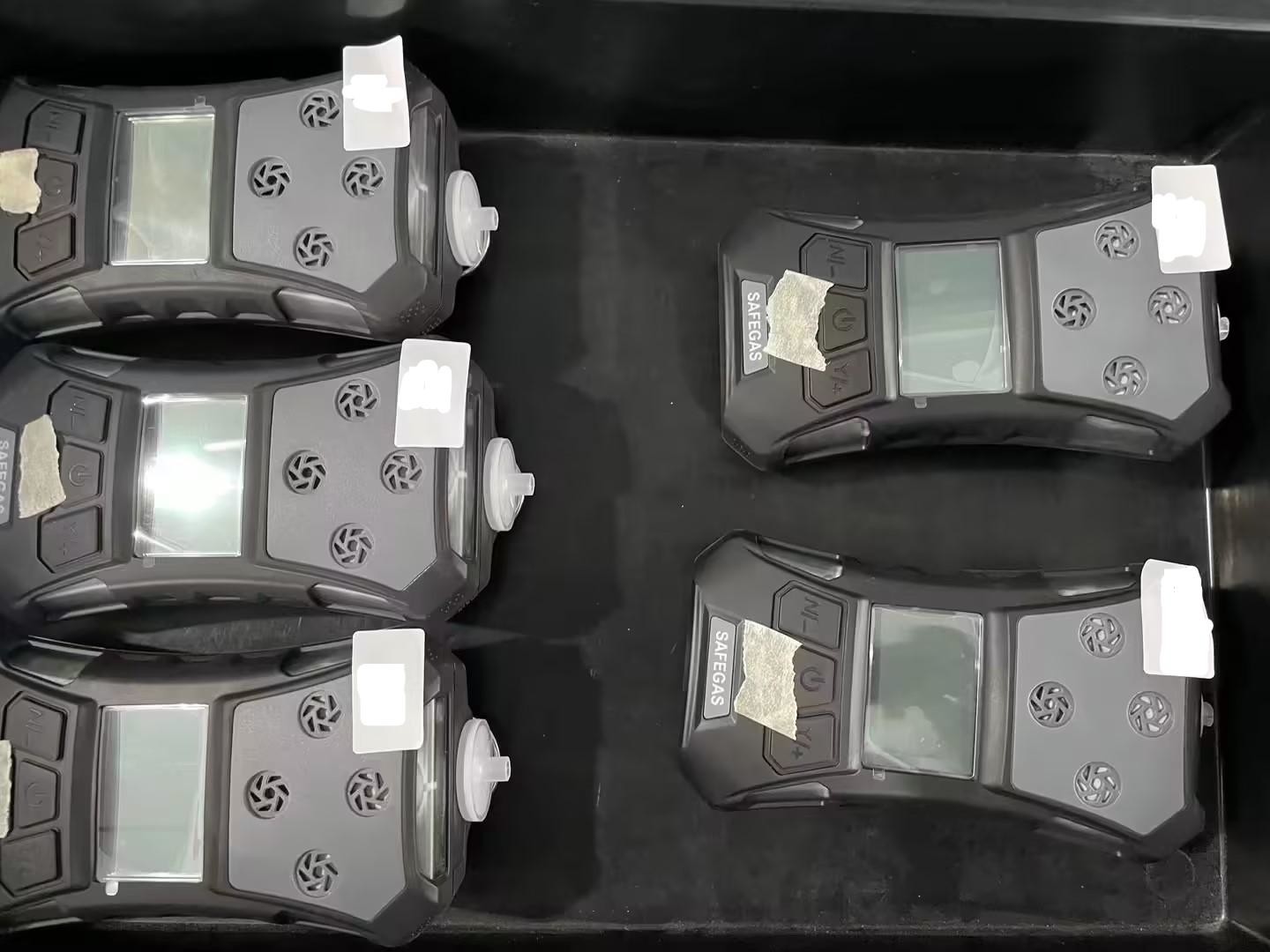

Application Photos
Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 6Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 7Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 8Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 9Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 10
Standard Configuration
  • Gas detector - 1 piece
  • 12V/1A DC power adapter - 1 piece
  • USB cable - 1 piece
  • User manual - 1 piece
  • Warranty card - 1 piece
  • Filter - 1 piece
  • Aluminum suitcase - 1 piece
Why Choose Us?
  • R&D team experience: over 25 years
  • Company certification: ISO9001, ISO45001
  • Product certification: IECEx (the only one in China), ATEX, CE
  • Delivery: 5-7 days
  • Yearly capacity: 80,000 units
  • Service: Professional sales staff provide 7*24 hours service
Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

  • Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
  • Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controller panels: YT-1100H, YT-1600H
Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 11
Certifications

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.

Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 12
Major Clients

We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestle and more.

Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 13
Frequently Asked Questions
Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 14Smart Portable F2 Gas Detector with Pump Suction for Fluorine Gas Leak Detection 0-10PPM Range ATEX IECEx Certified 15
