| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | SAFEGAS |
| Certification: | ISO CE CNEX |
| Numéro de modèle: | Sky3000 |
| Quantité de commande min: | 1 |
| Prix: | négociable |
| Détails d'emballage: | Carton |
| Délai de livraison: | 3 jours de travail |
| Conditions de paiement: | T/T, Union occidentale |
| Capacité d'approvisionnement: | 1000 pièces par mois |
| gaz: | O2 LEL DE CO H2S | Plage de mesure: | 0-1000PPM 0-100PPM 0-30%VOL 0-100%LIE |
|---|---|---|---|
| Résolution: | 1PPM 0,1PPM 0,1% VOL 1% LIE | Type de capteur: | Électrochimique |
| Méthode d'échantillonnage: | Diffusion | Matériel: | Étui ABS+cuir |
| Afficher: | Écran graphique LCD à matrice de points monochrome 128*128 | Mode d'alarme: | son, lumière et vibration |
| Batterie: | Batterie au lithium rechargeable de 3,7 V, d'une capacité de 2 500 mAh | unité: | ppm, mg/m3, %VOL, %LIE |
| Taille du paquet unique :: | 131 cm * 83 cm * 35 cm | Poids:: | 240g |
| Degré de protection: | IP65 |

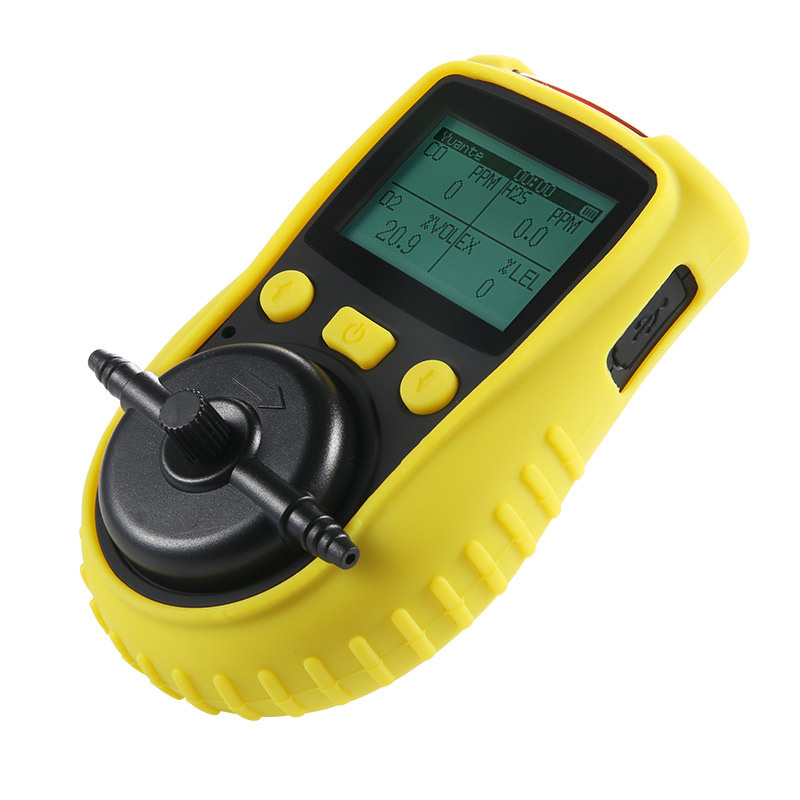

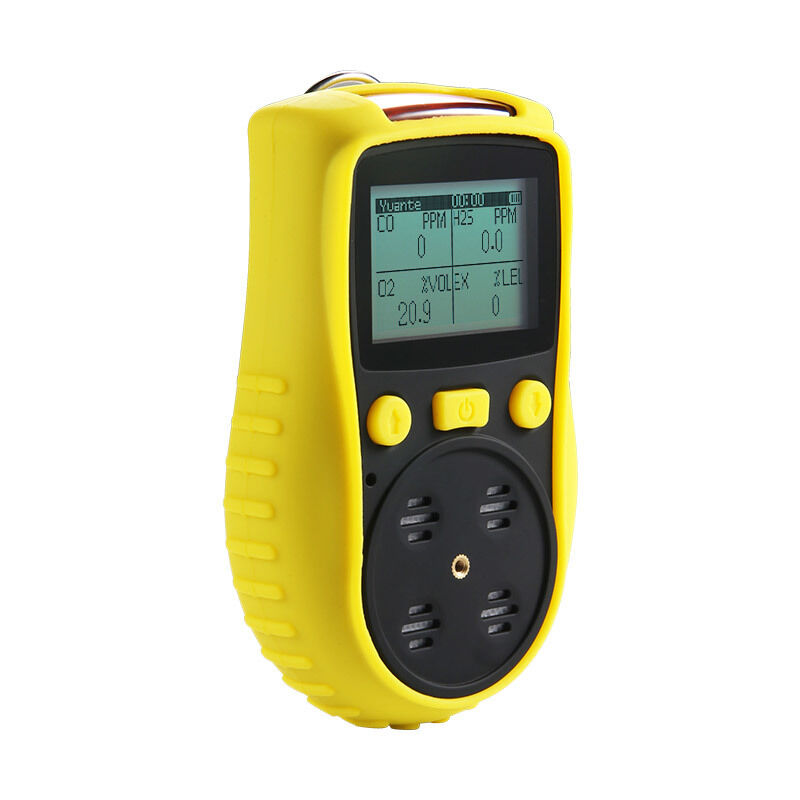

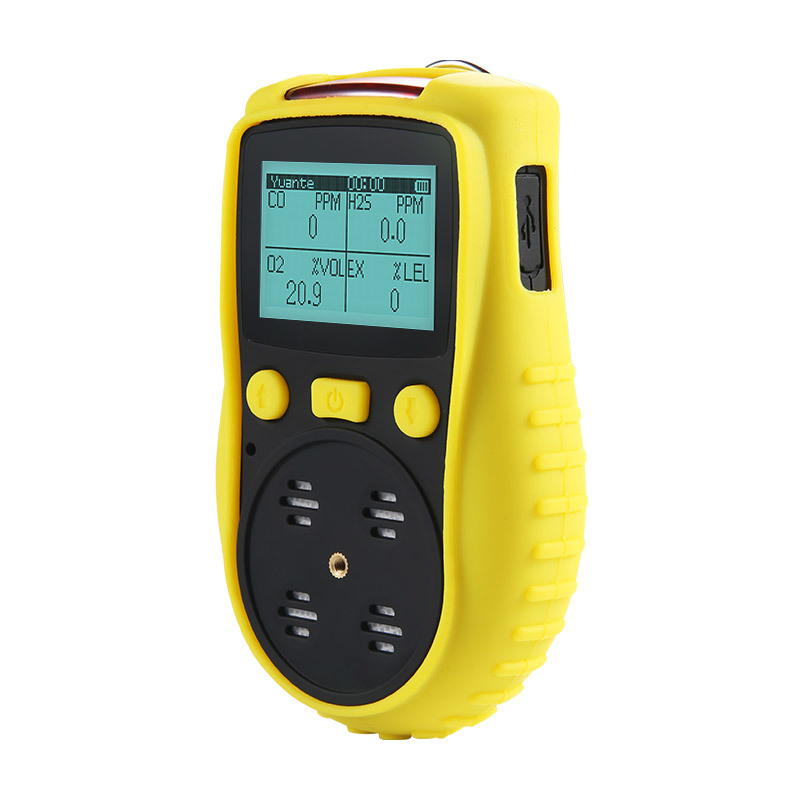

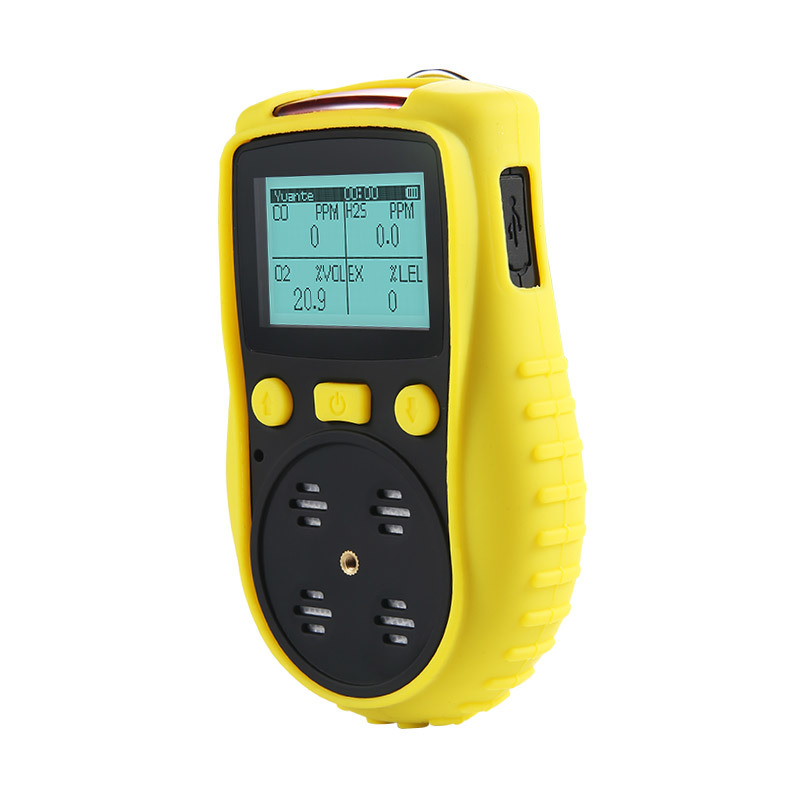

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
