IP68 Dustproof Multi-Gas Detector with Bluetooth Transmission and 1000 Data Records for Safety Warning

Informations de base
Lieu d'origine: CHINE
Nom de marque: SAFEGAS
Certification: ATEX/EMC/IECEX
Numéro de modèle: Micmeta
Quantité de commande min: 1
Prix: négociable
Détails d'emballage: Carton (22 * 16 * 11cm)
Délai de livraison: 3 jours de travail
Conditions de paiement: T/T
Capacité d'approvisionnement: 1000 pièces par mois
Détail Infomation
Méthode de travail: Diffusion Heures de travail: Temps de veille 24h, temps de charge < 6h
Temps de réponse (T90): ≤30s Transmission sans fil: Fonction de transmission Bluetooth (facultatif), fonction de transmission Lora (facultatif)
Certification (règlementation de l'UE): Le présent règlement est obligatoire dans tous ses éléments. Resolusion: Précisé selon l&#39;application
Test et étalonnage automatiques après mise en marche: Y compris les essais automatiques, l'étalonnage, le zéro automatique, la valeur maximale (MAX), la v Poids: 240 g (avec batterie au lithium)
Plateforme d'étalonnage: Les opérations de modification, d'essai fonctionnel et d'étalonnage peuvent être effectuées sur la s Degré de protection: IP66 / IP68
Enregistrement de données: 1000 ensembles d'enregistrements de données et 100 ensembles d'enregistrements d'événements Gaz détecté: LIE CO
Gamme: 0-100%LIE CO 0-1000PPM Batterie: 3.7V batterie au lithium rechargeable, capacité de batterie 2300mA

Description de produit

IP68 Dustproof Gas Detector For Flammable Vapor And Carbon Monoxide Leak Safety Warning
Product Overview

Portable multi model LEL CO gas detector with bump test and calibration. MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight with small size. The standard gas type is multi 4 (CO H2S O2 LEL) gases and also supports hundreds of selectable gases. Features standard mandown alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.

Product Specifications
Sampling method Diffusion
Gas type LEL CO
Measure range 0-100%LEL CO 0-1000PPM
Resolution 1%LEL 1PPM
Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on the specific sensor)
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Display Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable.
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade CNEX:Ex ia IIC T4 Ga
(EU regulations) 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86~106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)
Applications
  • Natural gas pipeline maintenance combustible gas leakage detection
  • Boiler maintenance workshop carbon monoxide poisoning risk monitoring
  • Paint spraying workshop flammable gas and toxic gas safety testing
  • Gas station fuel leakage on site rapid concentration inspection
  • Underground parking enclosed space gas accumulation early warning
  • Chemical solvent warehouse flammable toxic gas regular patrol
  • And many more applications...
Product Images

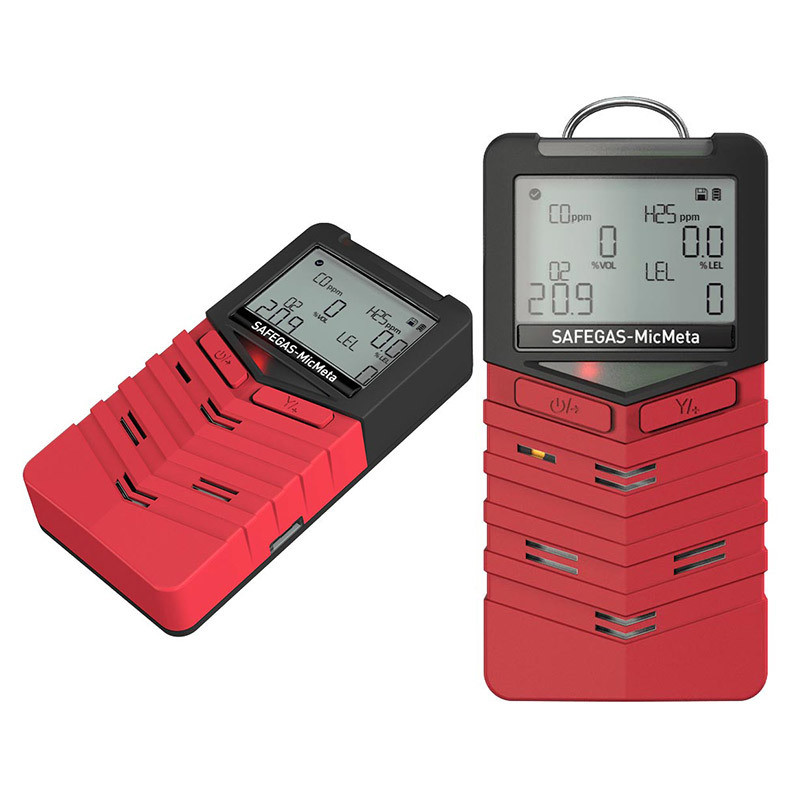

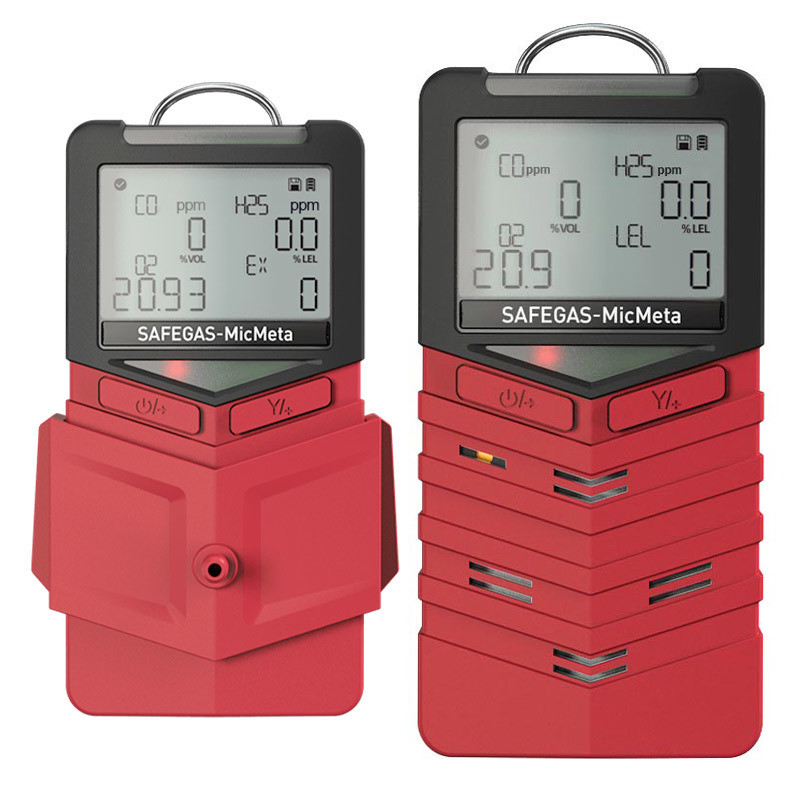

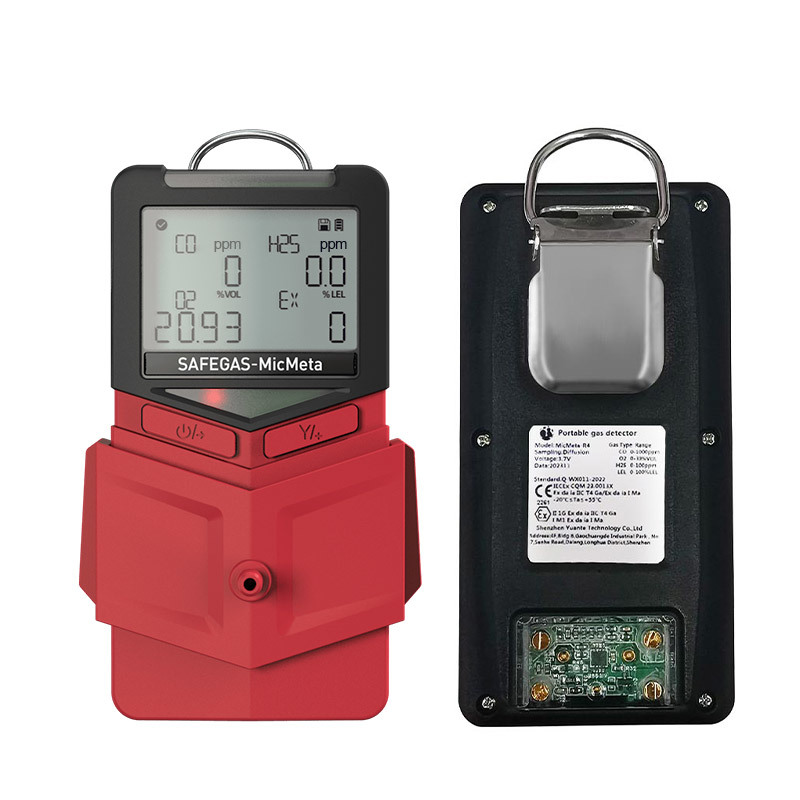

MicMeta multi-gas detector front view showing LCD display and compact design MicMeta multi-gas detector side view with back clip for wearable use
Product Advantages
  1. IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
  2. Compact, lightweight, small size with back clip, ergonomic and wearable design
  3. Standard man down alarm, password protection, ID identification function
  4. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  5. With self-test function, which can improve safety by automatic self-test
  6. Standard 1000 data records and 100 events records
  7. Support firmware upgrade remotely
  8. With docking station to perform daily bump test and calibration (Optional)
  9. Wireless data transmission including Lora, Bluetooth (Optional)
  10. Low power consumption, battery run time is up to 24 hours per charge
